Package weight: 2.50 kgFeatures:
1. Anti- rust and anti-corrosion (Stainless steel/Zina alloy/Brass material optional).

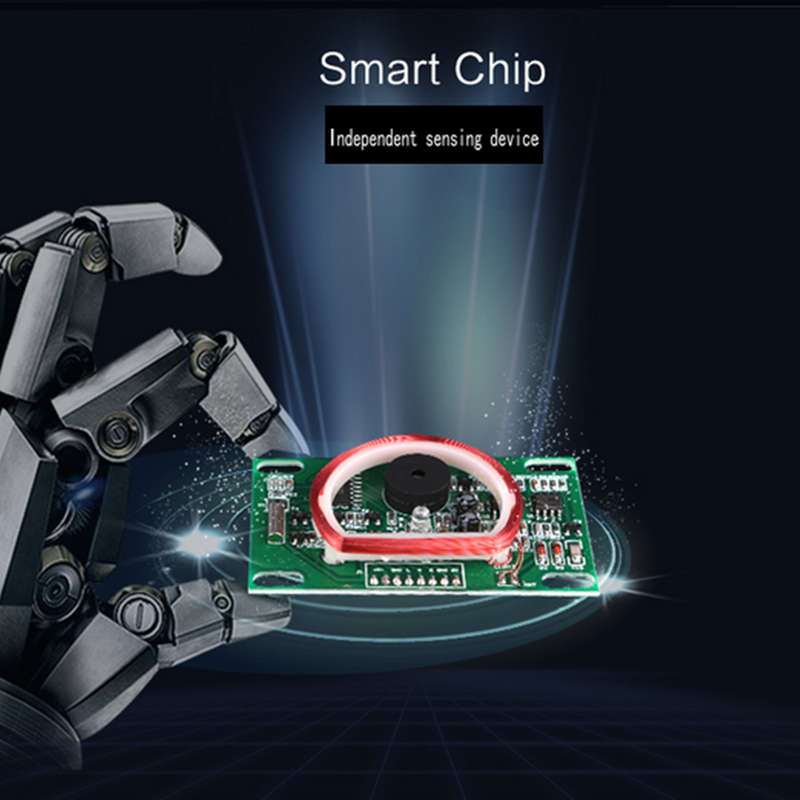

2. Famous brand chips--Atmel or P hilips, sufficiently stable, lock can use for 20 years.

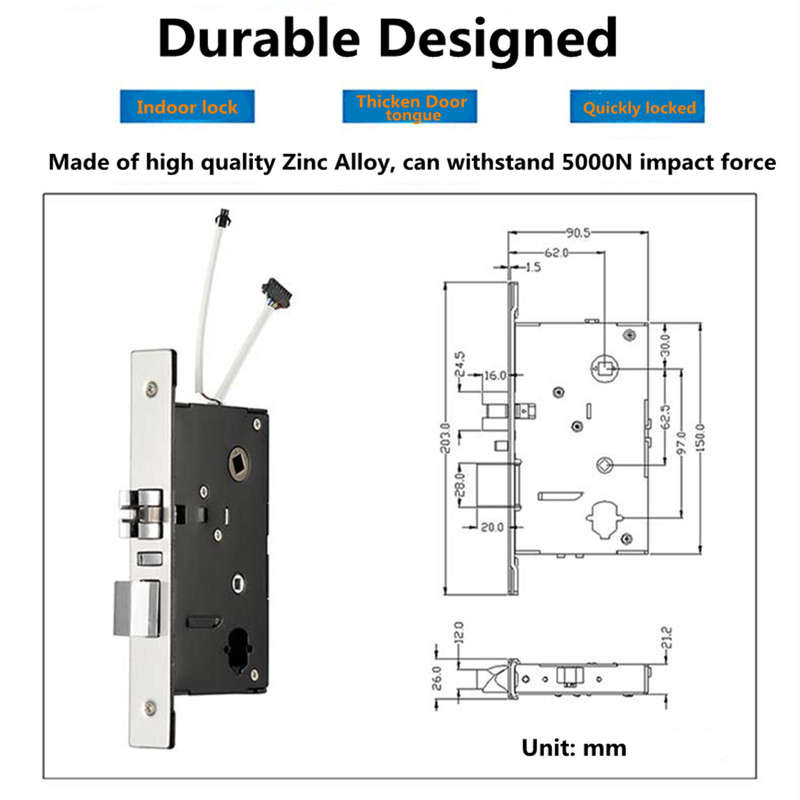

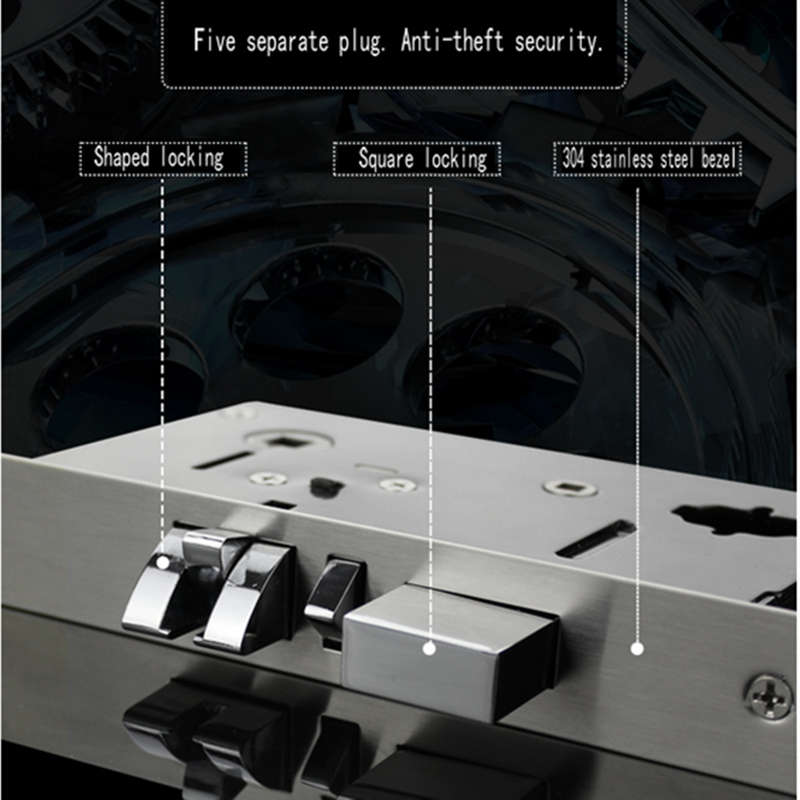

3. ANSI standard 5 latches lock body ensure security, anti-strike.
4. Data collector can download lock records, eg. when, who use which key open lock.
5. 4pcs AA batteries can use about 10-12 months.
6. Working clock is setted inside locks to control the effective time limit of card keys.
eg. if set check out time 11:00AM, pass 11:00AM, guest card can not open door lock.

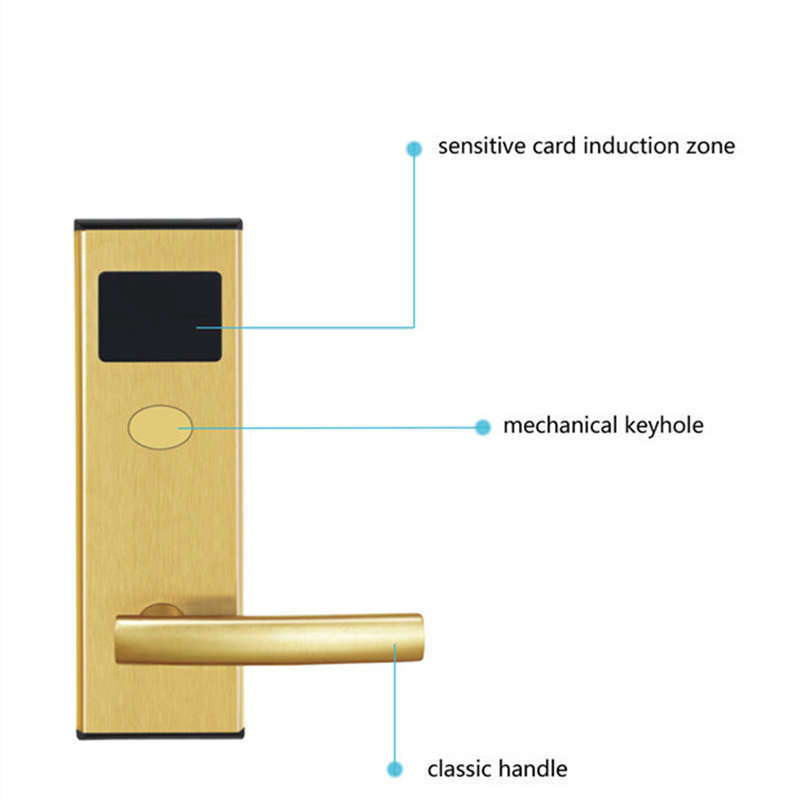

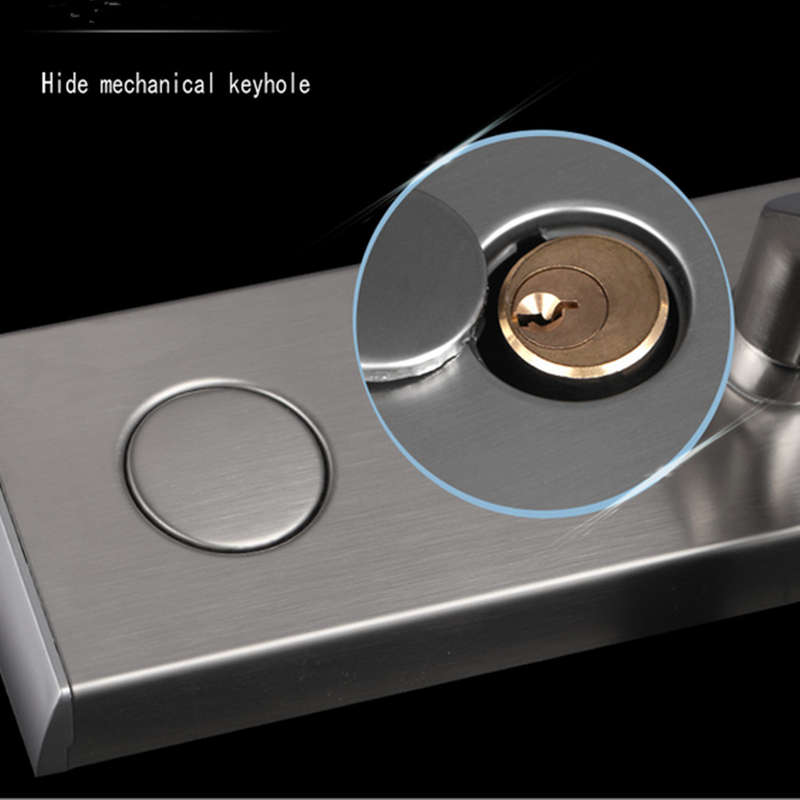

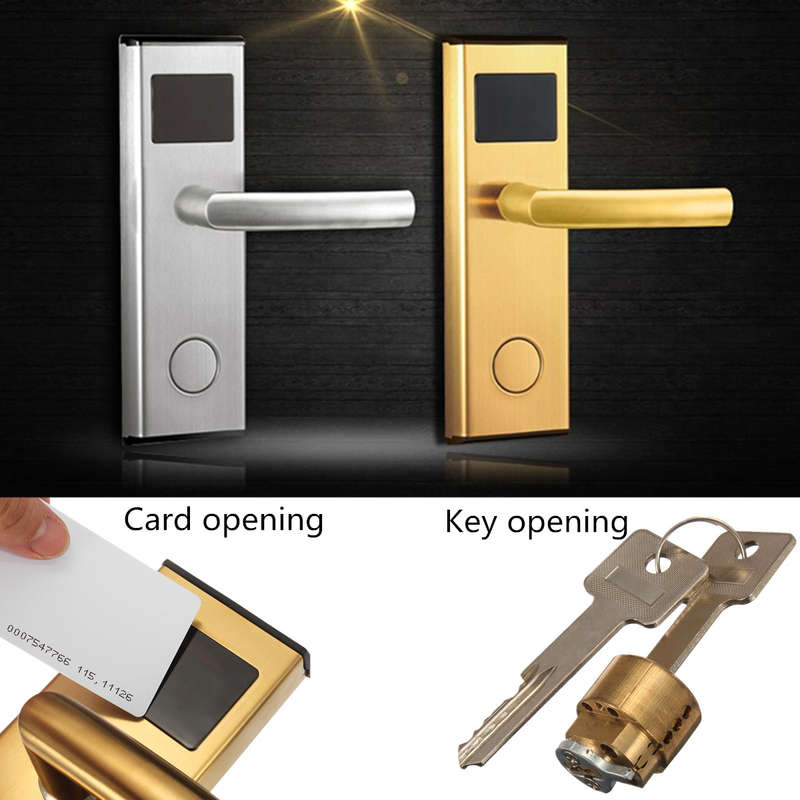

7. Two unlock ways: RFID card or mechanical key (Master mechanical key optional).
Specification:

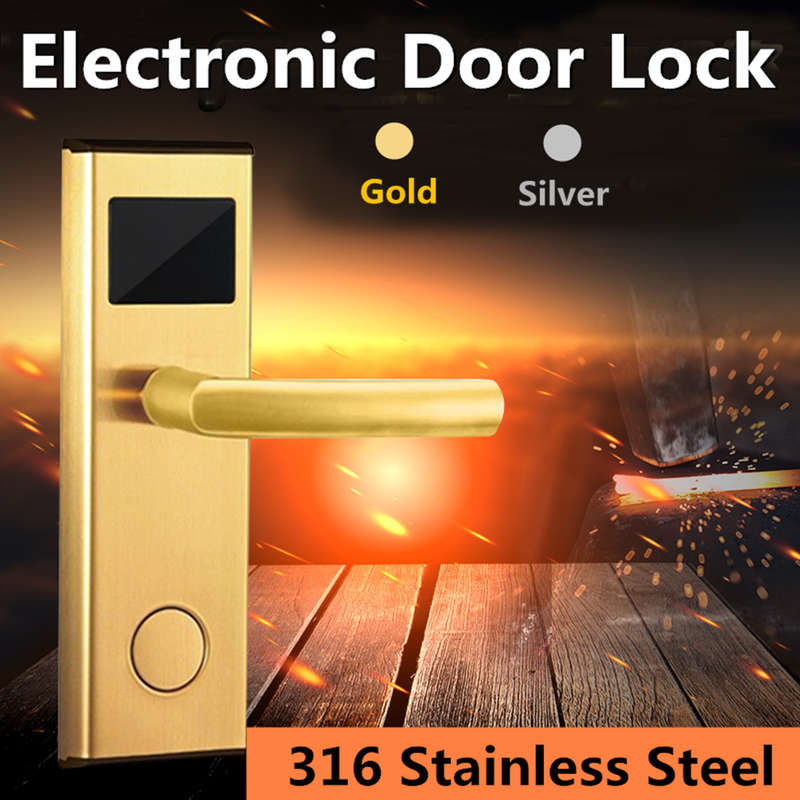

Color: Gold, Silver
Material: Stainless Steel
Size: Approx. 240 x 78mm/9.45 x 3.07''
Induction operating frequency: 125 KHz or 13.56MHz options
Applicable Card: T5557/T556EM4305
Voltage: 6V DC, 4 x 1.5V Alkaline Batteries (Not Included)
Alarm Voltage: <4.8 V
Static power consumption: <10 microamps
Dynamic power consumption: <150 microamps
Sensing distance: 35mm ± + 5mm
Card reading time: <0.2 seconds
Temperature: -40 °C to 85 °C
Humidity: <95 °C
Antistatic: >15V, it still ensures the information not lost and stable work under the condition of strong static interference
Memory: 880 Transactions include Time/Date/Card ID/Card type/Room ID
Card Usage:
1. Guest card: Issued from reception to open its own room with expiring date
2. Master card: Hold by management or GM or manager to access all rooms of hotel with deadbolt opening
3. Floor card: Hold by clean staff to enter the rooms in one floor.
4. Building card: Hold by manager to enter the rooms in one building
5. Lost card: Used to suspend the lost guest card
6. Emergency card: Enter the all rooms when emergency
RFID Hotel Door Lock System Composition:
1. RF Door Lock (qty = guest room)--installed in doors.
2. Encoder (qty=1-2pcs/hotel ) --For issuing/ program all cards to be unlock key.
3. Energy-saving Switch (qty = guest room)--To control power,saving power for you.
4. Cards (qty = 3-5 times of guest room)--be programmed to be the key by encoder.
5. Data collector (1pc/hotel, Optional)--Download unlock records(Who/When open) from lock.
6. Software,English language(free)--For control and management the whole system. SDK support. For other language sofware, you can translate it to be your language.Package Included:

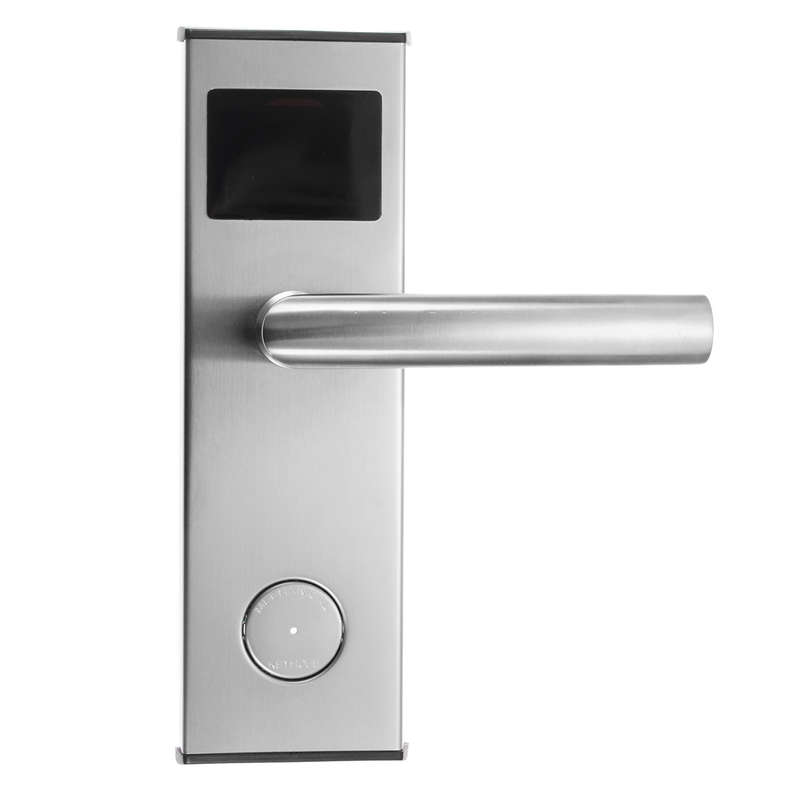

1 x Digital Card Lock
4 x Digital Card
2 x Key
1 x Fitting Screw Kit

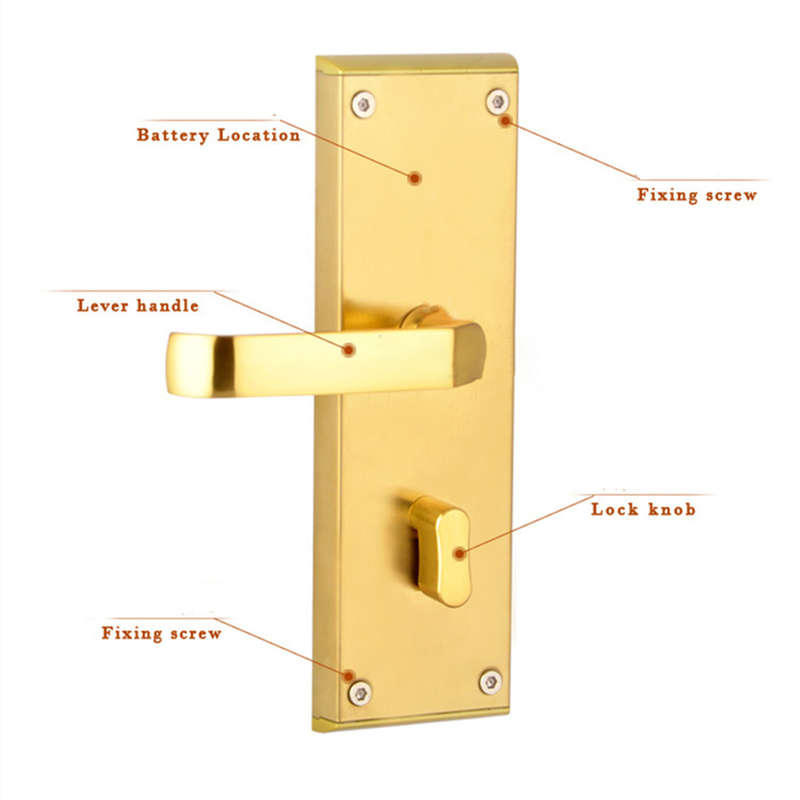

Detail Pictures:
