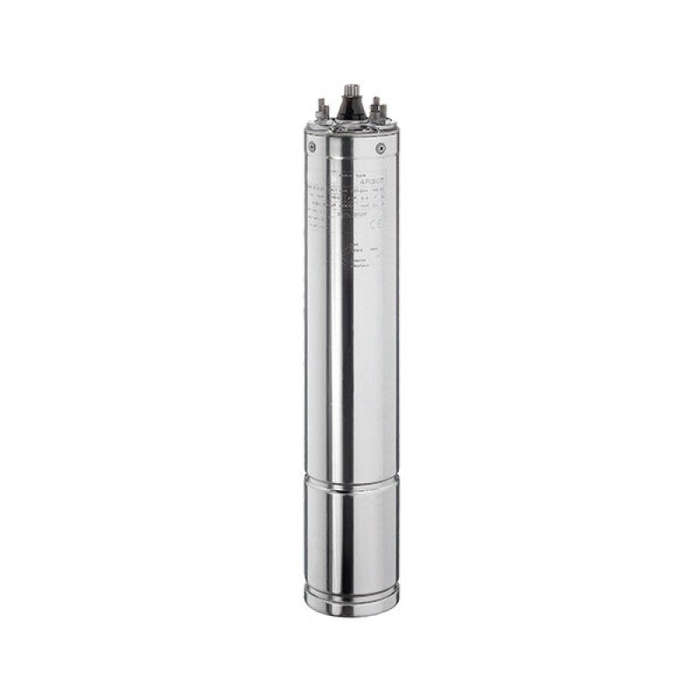

Stairs Motor Submersible 100 Mm 1.12 Kw 400 V

100 Mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non Toxic Vegetable Oil. Dimensions And Flange According To Nema4 Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box. Maximum Water Temperature Of 35 Degrees C And Immersion Depth Of 200 M. Motor Can Be Installed In A Horizontal Or Vertical Position. Motor Fitted With A Removable Lead Out Cable. 0.37 Kw To 4 Kw. General Specifications: Mounting Flange: 4 Nema Standard; Insulation Class F; Protection Ip68; Single Phase Motors: 0.37 Kw Up To 4.0 Kw. Three Phase Motors: 0.37 Kw Up To 7.5 Kw; Standard Voltages: 1 ~ 230 V (50 Hz); 3 ~ 230 V Or 400 V (50 Hz). Cable Length: 1.7 M 0.37 Kw Up To 1.5 Kw; 2.5 M 2.2 Kw Up To 7.5 Kw. Materials: Motor Shell 304 Stainless Steel; Mechanical Seal Ceramic/Carbon; Shaft (0.5 3 Hp) 304 Stainless Steel; Shaft (4 10 Hp) 630 Stainless Steel.
