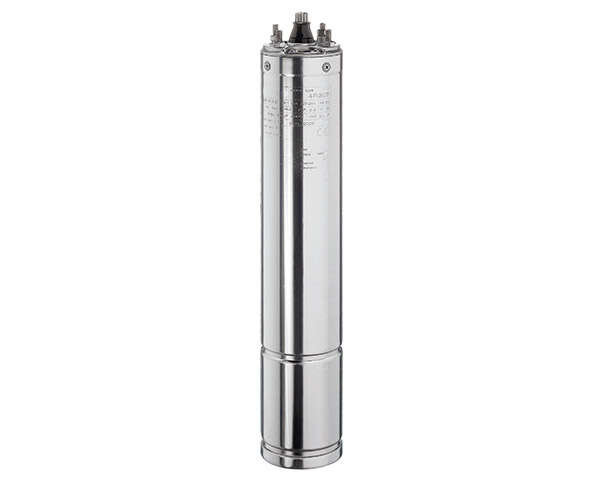

Stairs-Pumps Submersible Motor - 0.56KW 230V

Specifications:
- Submersible Motor
- Brand: Stairs
- Type: Submersible
- Voltage: 230V
- Power: 0.56Kw

100 mm rewindable submersible motor for standard applications with maintenance free lubricated bearings and approved non-toxic vegetable oil. Dimensions and flange according to NEMA4 standards. Matching Stairs control boxes must be installed or a USB control box. Motor can be installed in a horizontal or vertical position. Motor fitted with a removable lead-out cable. 0.37 kW to 4 kW.

Kw - 0.55
HP - 0.75
Voltage (V) - 230
IN (A)- 5.0
Istart (A) - 15
Efficiency (%) - 62 %
PF (COS ?) - 0.90
Nn RPM - 2840
Thrust load (N)- 2000
Cable - 1.5 mm - 1.7 m

General specifications:
- Mountain flange: 4 NEMA standard
- Insulation class F
- Single phase motors: 0.37 kW up to 4.0 kW
- Three phase motors: 0.37 kW up to 7.5 kW
- Standard voltages: 1 ~ 230 V (50 Hz), 3 ~ 230 v or 400 v (50 Hz)
- Cable length: 1.7 m - 0.37 kW up to 1.5 kW, 2.5 m - 2.2 kW up to 7.5 kW

Operating parameters:
- Max temperature: 35 C (92 F)
- Max immersion depth: 200 m
- Motor cooling flow rate: 0.2 m / sec
- Axial thrust: 2000N - 0.37 kW - 1.5 kW, 3000N - 2.2 kW, 5000N - 3 kW - 7.5 kW

Matching Stairs control boxes must be installed or a USB Control Box.

What's in the box
1 x Stairs-Pumps Submersible Motor
