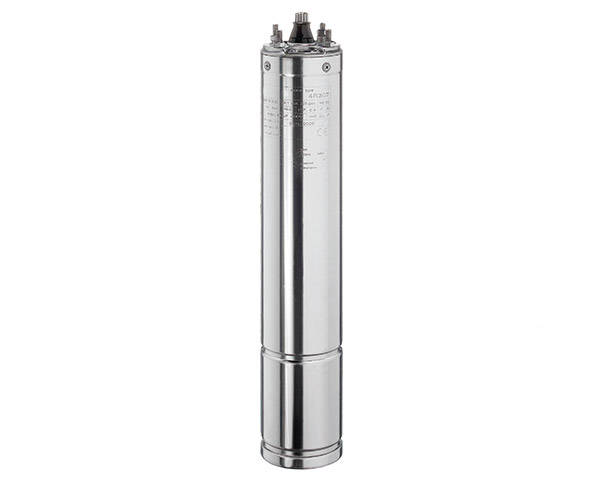

Stairs-Pumps Submersible Motor - 2.20KW 230V

Specifications:
Submersible Motor
Brand: Stairs
Type: Submersible
Voltage: 230V
Power: 2.20Kw

100 mm rewindable submersible motor for standard applications with maintenance free lubricated bearings and approved non-toxic vegetable oil. Dimensions and flange according to NEMA4" standards. Matching Stairs control boxes must be installed or a USB control box. Motor can be installed in a horizontal or vertical position. Motor fitted with a removable lead-out cable. 0.37 kW to 4 kW.

Kw 2.2
HP 3
Voltage (V) - 230
IN (A)- 15.0
Istart (A) 46
Efficiency (%) - 72 %
PF (COS ?) 0.9
Nn RPM - 2840
Thrust load (N)- 3000
Cable 1.5 mm² 2.5

General specifications:
- Mountain flange: 4" NEMA standard
- Insulation class F
- Single phase motors: 0.37 kW up to 4.0 kW
- Three phase motors: 0.37 kW up to 7.5 kW
- Standard voltages: 1 ~ 230 V (50 Hz), 3 ~ 230 v or 400 v (50 Hz)
- Cable length: 1.7 m 0.37 kW up to 1.5 kW, 2.5 m 2.2 kW up to 7.5 kW

Operating parameters:
- Max temperature: 35 °C (92 °F)
- Max immersion depth: 200 m
- Motor cooling flow rate: 0.2 m / sec
- Axial thrust: 2000N 0.37 kW 1.5 kW, 3000N 2.2 kW, 5000N 3 kW 7.5 kW

Matching Stairs control boxes must be installed or a USB Control Box.
