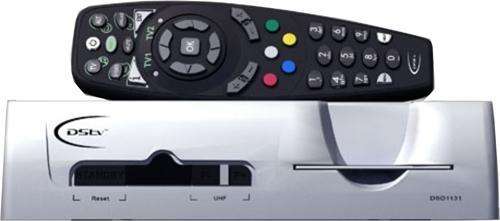

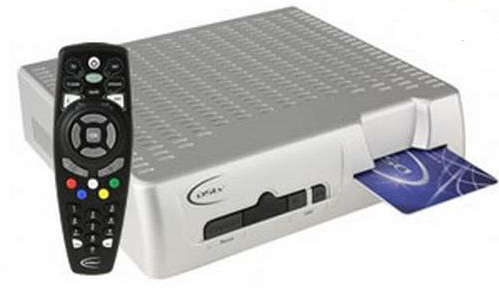

Standard DSTV Decoder - DSD1131 - AS NEW
Check my rate
Main centres: | 1-3 business days |
Regional areas: | 3-4 business days |
Remote areas: | 3-5 business days |
Main centres: | 1-3 business days |
Regional areas: | 3-4 business days |
Remote areas: | 3-5 business days |
Features:
DVB-S and MPEG-2 compliant
STi5107 Processor Core
16 KByte NVRAM
8 MByte OTP Flash Memory
32 MByte DDR RAM Memory
Over-the-air secure software download
CVBS RCA output
RF Remodulator with XtraView capability (loop thru)
Stereo audio outputs
Open TV Middleware
Irdeto Conditional Access Technology
Irdeto secure silicon enhancements
External Power Supply unit
Specifications:
CONDITIONAL ACCESS CA System
Smart Card SpecIRDETO Secure Silicon
ISO 7816 version 5 or higherSOFTWARE Middleware
User Interface
EPG
LoaderOpenTV
3rd Party Network Package
8 Day EPG
Secure over the air and serial CA compliant loaderVIDEO Video Decode
Video Format
Graphic PlanesMPEG-2 MP@ML
PAL I, B, G
4 Planes: Background, Still, Video and OSDAUDIO Audio Decode MPEG-2 layer 1&2 (Musicam), sampling frequencies 32, 44.1, 48 KHz. PROCESSOR CORE Host Processor
RAM
Flash Memory
EEPROMSTi5107 Processor Core
32 MBytes DDR RAM - unified memory
8 MBytes NOR Flash
16 KBytesFRONT END Frequency Range
DVB Standard
LNB Switching
LNB polarisation
Symbol rate950 - 2150 MHz
DVB-S, QPSK
22 KHz DiSEqC V4.2 level 1.1
13/18V 500mA max
2 to 45 MSymbols/sFRONT PANEL Status Indicators
Buttons
Smart Card reader
IR Receiver3 LED's
3 (P-, P+, Standby)
ISO 7816 parts 1 & 2
38 KHz IR Receiver (Plasma Hardened)CONNECTORS RF in
Baseband Video
RF Modulator Output
RF Loop-through Input
Setereo Audio
Power JackF-Type Female, 75 ohms, no loop-through
CVBS (1xRCA)
F-Type Female, CH21-69, 470 MHz to 860 MHz
Yes, F-Type Female
Variable volume (2xRCA)
Audio response diff.<1.5 dB from 15 Hz to 15 KHz
12V DC power jackPSU External PSU 190 - 260V AC to 12V DC, 47-63 Hz
STANDARD DSTV DECODER
DSD1131
