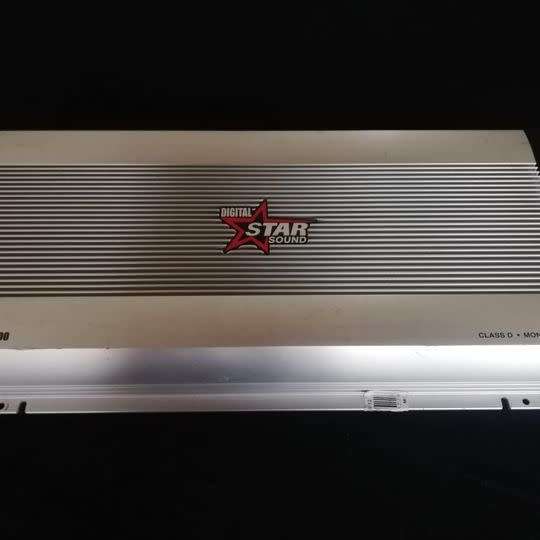

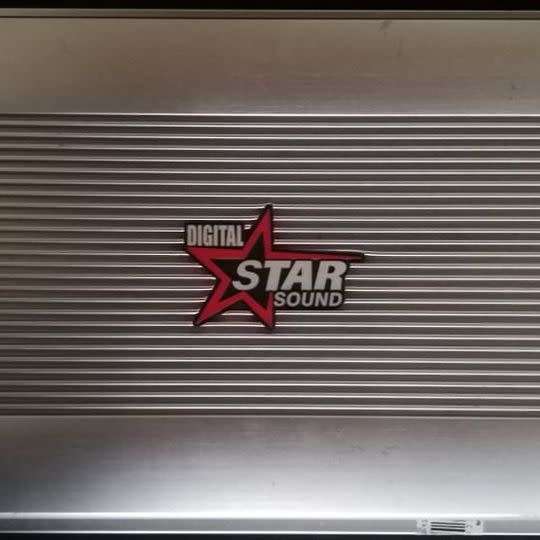

SSA-S1D-5800w
Class D Amplifier
Mosfet Power Supply
Double sided through hole Epoxy PCB
Gold plated Brass set screw terminals
24db/oct. crossover

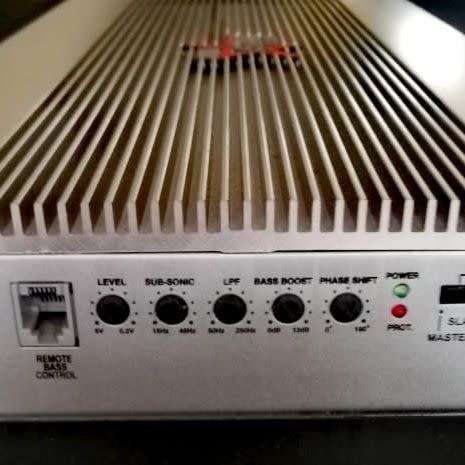

variable Low Pass crossover (50-250hz)
Variable 24db/oct. Subsonic filter (15-45hz)
Variable phase shift 0-180deg
Variable 0db-12db Bass Boost at 45hz
5way protection
Power overload Protection LED
Thermal Protection LED
Linkable Operation (master/slave mode)
1 ohm stable circuit
Soft start / mute circuit
Operation indicator with Micom control
S/N Ratio : >95db
THD (ihf-a) : 0.05%
Input sensitivity : 0.2v-6.0v
Input impedance : 20kohm
Slew rate : 10v / usec
Damping factor >100
Fuse Rating : 25a x 4
Dimensions (w x h x l ) : 245mm x 58.5mm x 440mm
