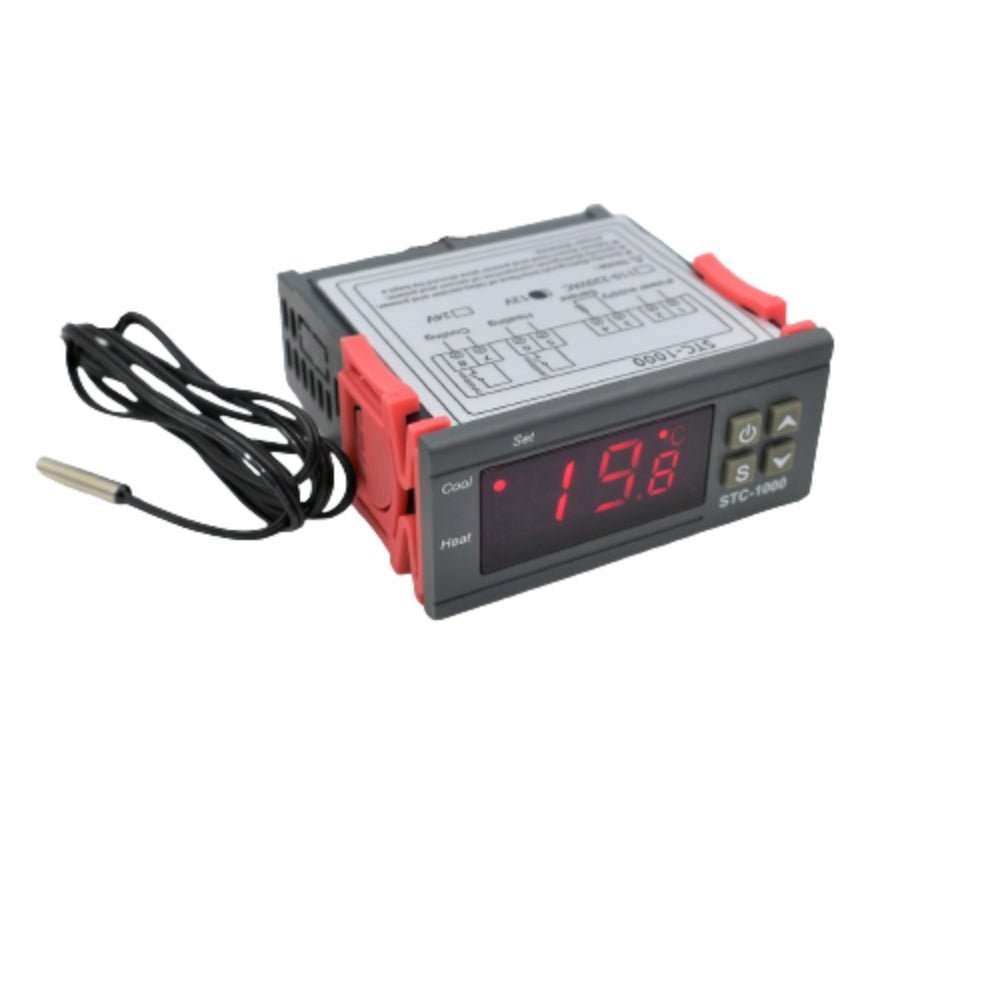

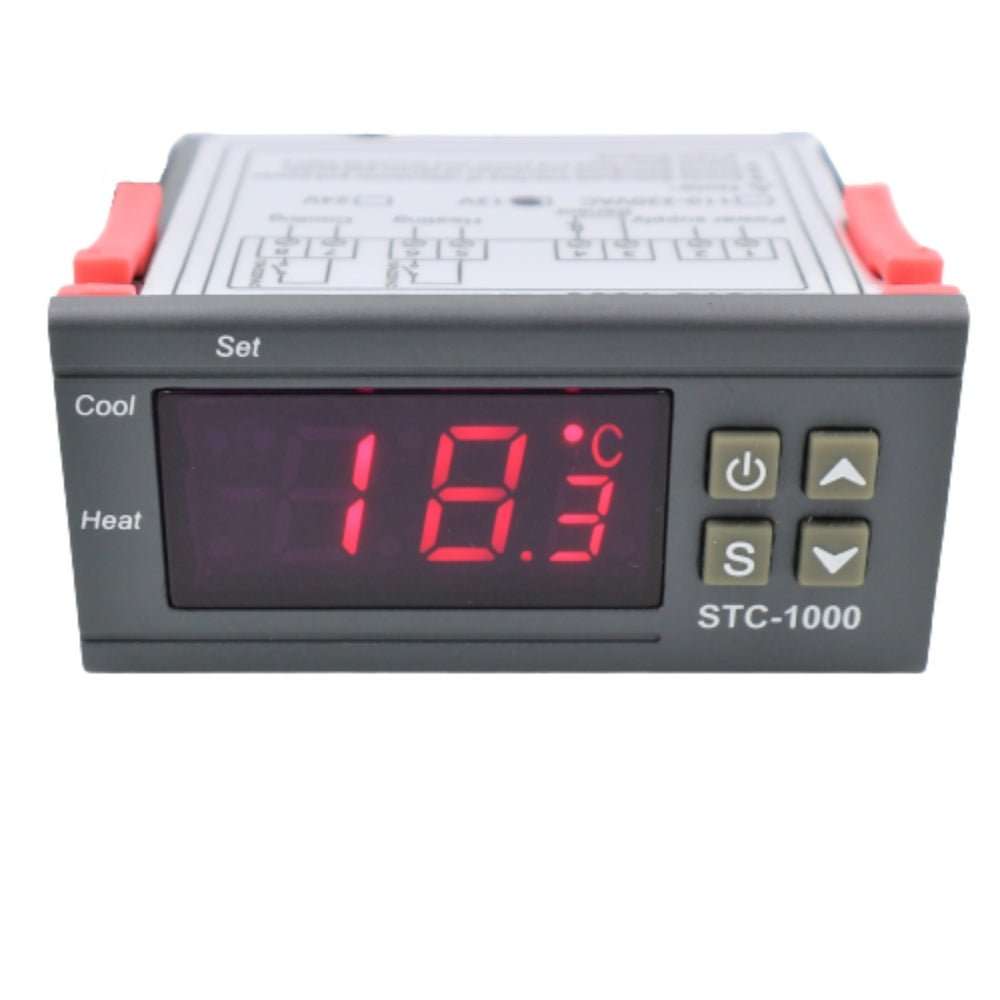

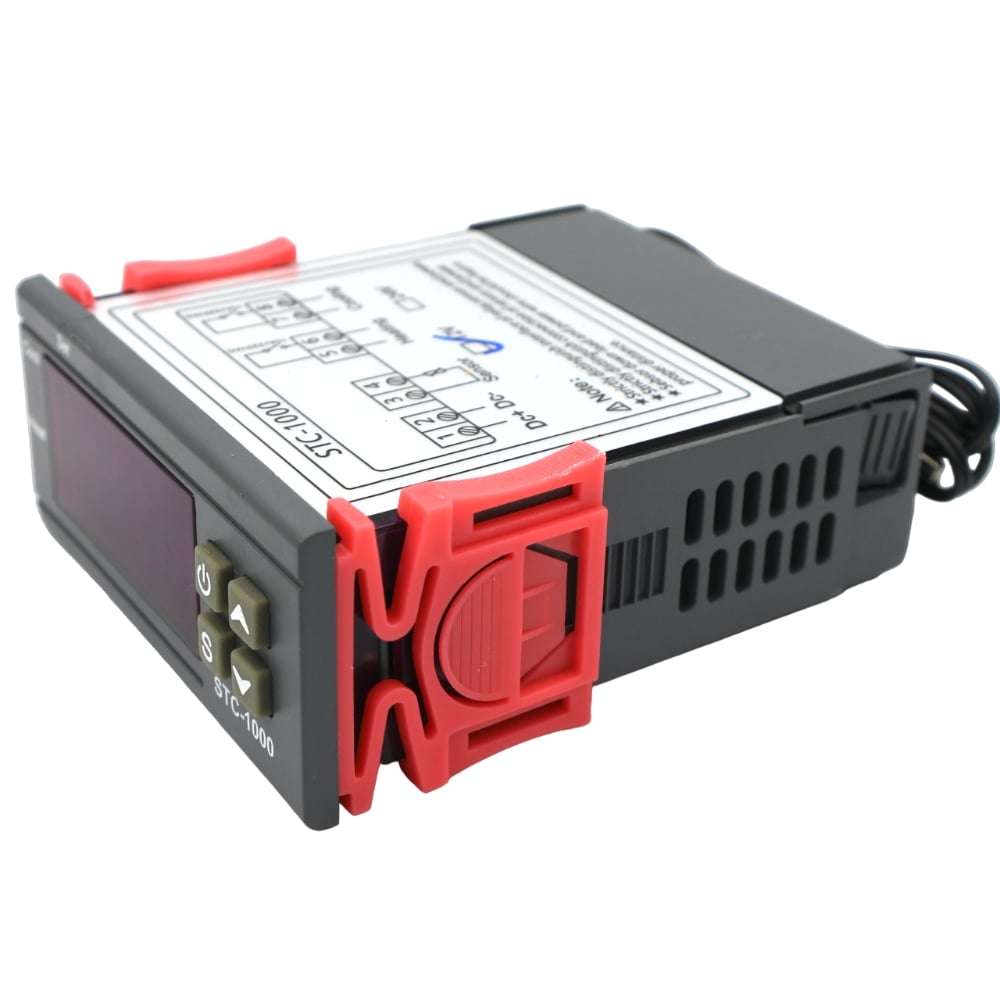

STC-1000 12V Digital Temperature Controller (12V DC, 10A)

The STC-1000 is the most common design for 1-stage digital temperature controllers. The controller works as a relay to turn on/off the heating or cooling device depending on the temperature measured through the probe (included). This 12V DC, 10A version is used in battery- and solar-powered applications with relays that can handle 220V AC (max 10A): fans in sheds, fish tanks, aquariums, brewing or fermentation processes, cold rooms etc.

• Simple and proven design
• One Relay Output: switch between heating and refrigeration mode according to the device you plug into the controller
• Maximum output load: 10A (2000W with  220V AC)

Specifications

• Type: STC-1000 12V DC
• Power supply: 12V DC
• Relay contact capacity: 10A / 2000W (220V AC)
• Control accuracy: 1

• Operating temperature range: -50 to +99
• Measurement probe: NTC10K (stainless steel, 1m cable)
• Controller ambient environment: 0 to 60 temperature 20 to 85% relative humidity
• Dimensions (mm): 75 x 35 x 85

Click here to view all temperature controllers available for sale in South Africa. Click here is you are looking specifically for the standard 220V AC STC-1000 controller.
