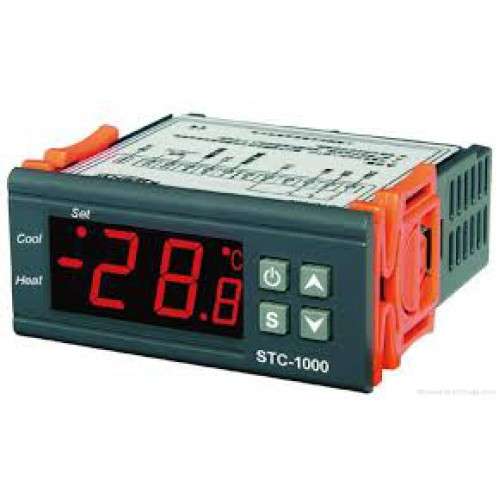

STC-1000 Digital Temperature Control Controller with Sensor

Function:

Switch the modes between cool and heat; Control temperature by
setting the temperature setting value and the difference value;
Temperature calibration; Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.


Specification and size:

Front panel size:75(L)*34.5(W)(mm)
Mounting size:71(L)×29(W)mm;
sensor length:2m (include the probe).
Product size75(L)×34.5(W)×85(D)mm;


Technical Parameters:

Temperature measuring range: -50~99°C;
Resolution: 0.1°C;
Accuracy: ±1°C (-50~70°C);
Sensor error delay: 1 minute
Power supply: 220VAC±10%, 50/60Hz;
Power consumption: ≤3W;
Sensor: NTC sensor (1PC);
Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
mbient temperature: 0~60°C;
Storage temperature: -30~75°C;
Relative humidity: 20%~85% (No condensate).
