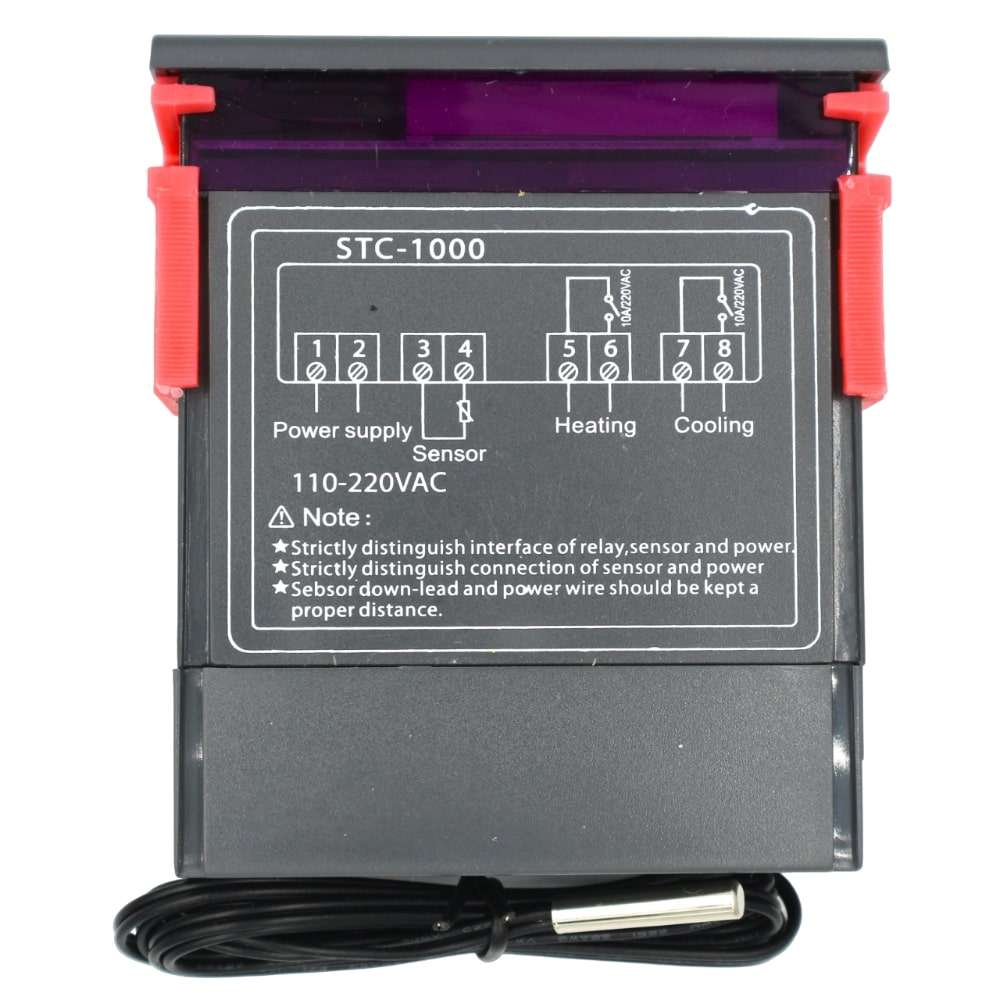

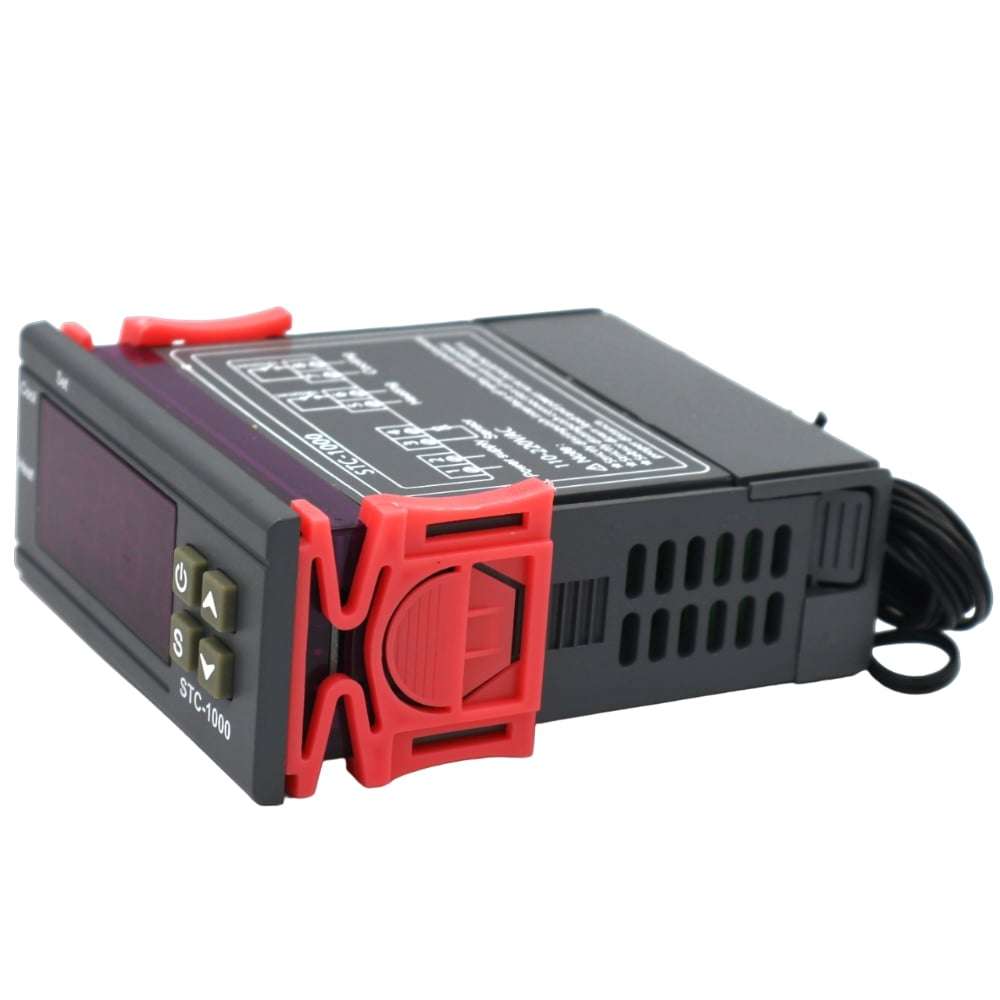

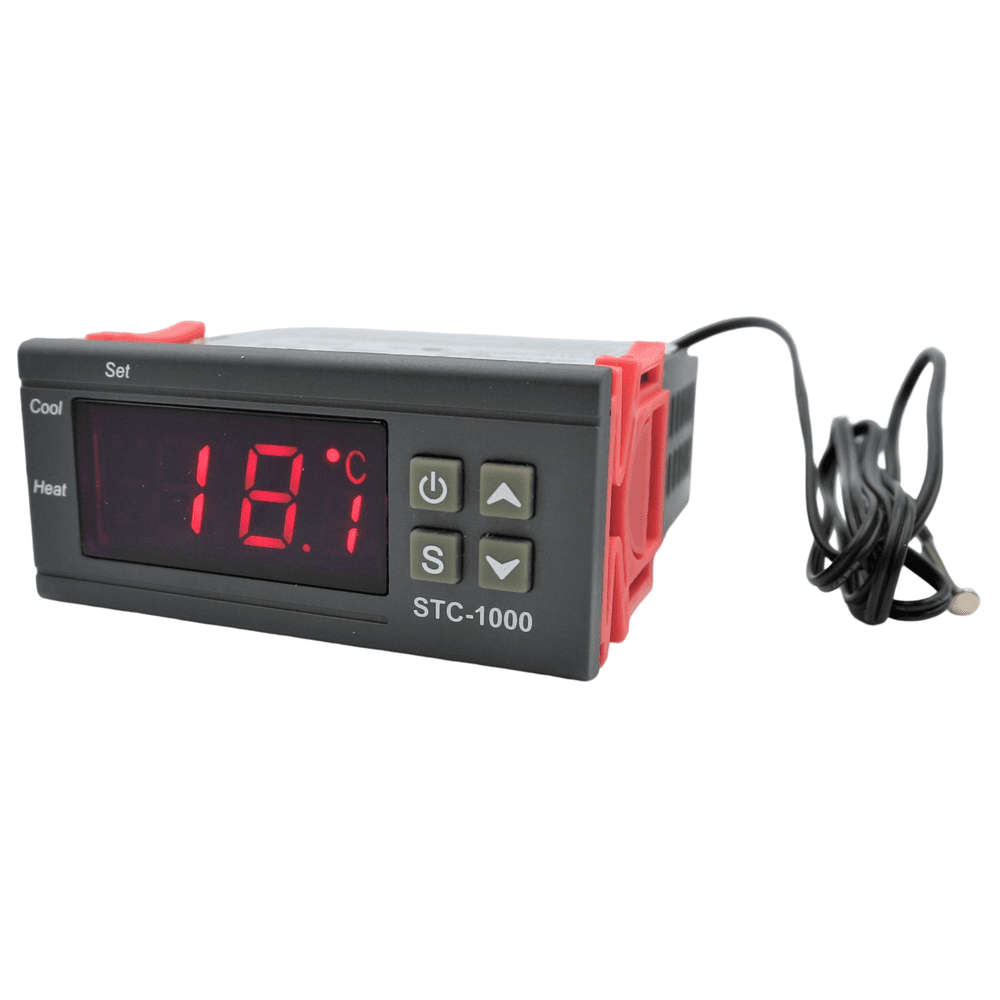

STC-1000 Digital Temperature Controller (220V AC, 2000W)

The temperature controller is a relay used to turn on/off the heating or cooling device connected with the controller according to the temperature range. The STC-1000 is a very common and reliable design for 1-stage digital temperature controllers. This 220V AC, 2000W version is used to cooling and heating devices for animal shelters, sheds, fish tanks, aquariums, brewing or fermentation processes, cold rooms etc. We also distribute a 12V DC STC-1000 temperature controller.

• Simple and proven design
• One Relay Output: switch between heating and refrigeration mode according to the device you plug into the controller
• Maximum output load: 2000W (220V AC)

Specifications

• Type: STC-1000 220V AC
• Power supply: 220V AC
• Relay contact capacity: 10A / 2000W (220V AC)
• Control accuracy: 1
• Operating temperature range: -50 to +99
• Measurement probe: NTC10K (stainless steel, 1m cable)
• Controller ambient environment: 0 to 60 temperature 20 to 85% relative humidity
• Dimensions (mm): 75 x 35 x 85

Click here to view all temperature controllers available for sale in South Africa

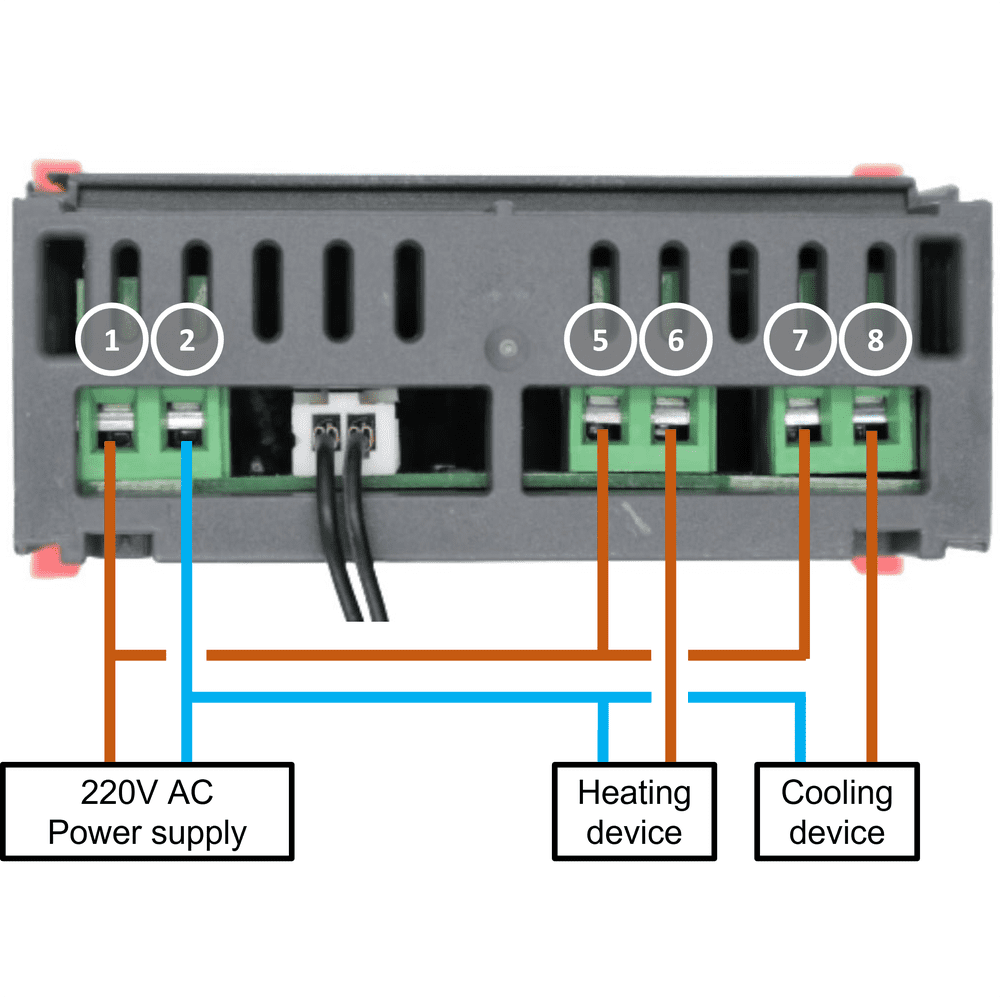

How to wire the STC 1000 temperature controller: video tutorial by @homebeerbrewery
