Steam Rechargeable Helicopter Pitch Ruler Metal Pitch Gauge Degree Angle for 200- 800 RC Helicopter

Description:

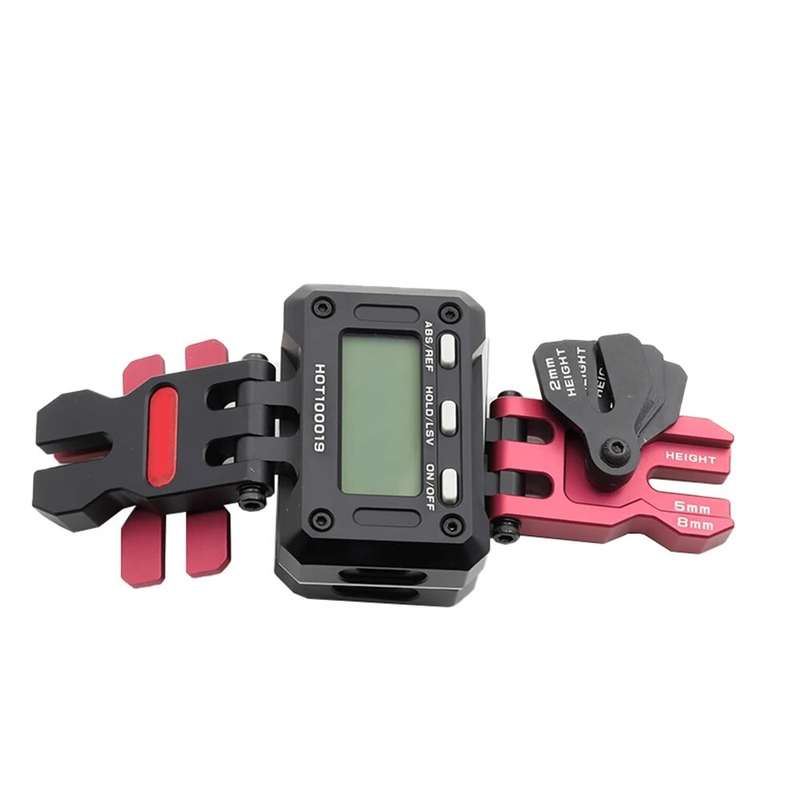

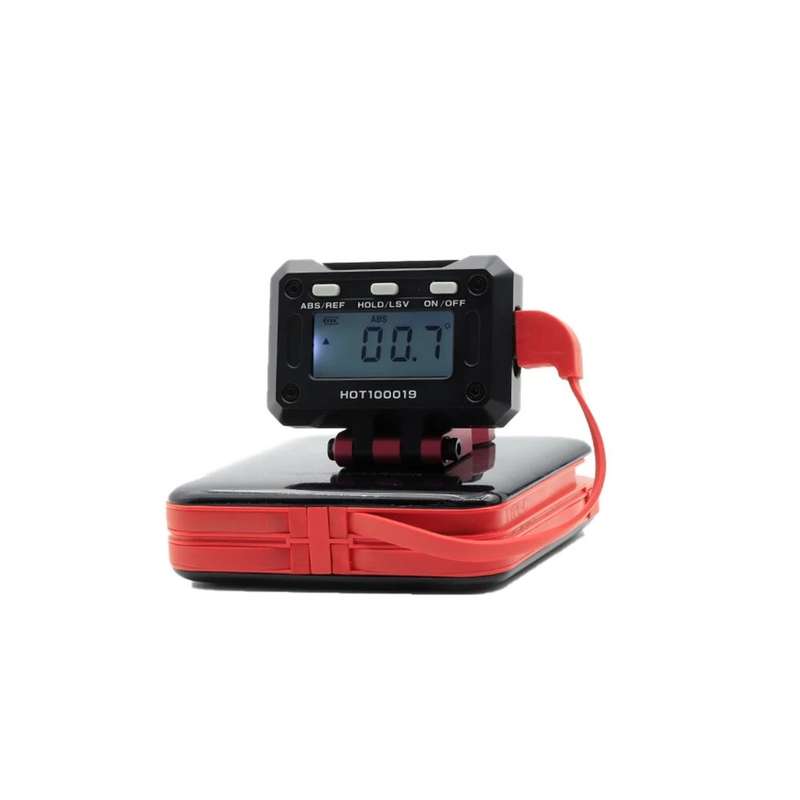

Steam Metal Pitch Ruler is with charging function, no need to worry about battery failure in use, with Type-C charging cable, can provide power for the product at any time. It is suitable for measuring the Angle of helicopter rotor with root thickness of 5mm/8mm/10mm/12mm/14mm.

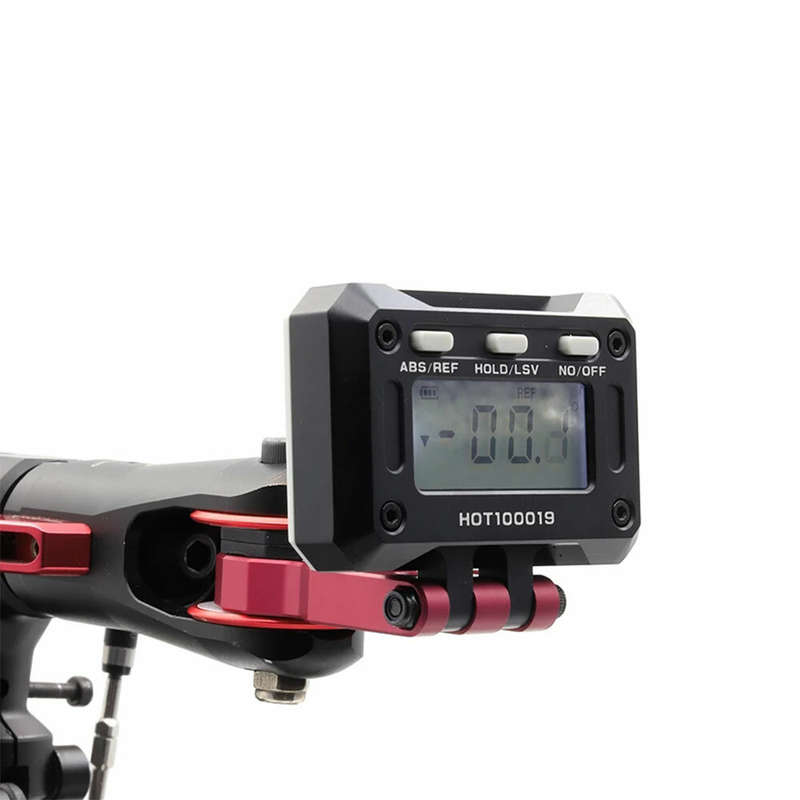

First place the metal pitch ruler on the relatively flat part of the motor or helicopter, press the ABS/REF key to clear the Angle to zero. Then the Angle value obtained by installing the metal pitch ruler on the rotor is the pitch Angle.

Specification:
1. Size:87.5×58.5×14mm
2. Working temperature:0-50
3. Weight:100g
4. Built in backlight, available at night
5. Detection Angle:±90 degree
6. Automatic flip screen function(Inner three axis gyro)
7. Equipped with relative measurement REF and absolute measurement ABS conversion
8. Data lock HOLD for reading
9. Shut automatically
