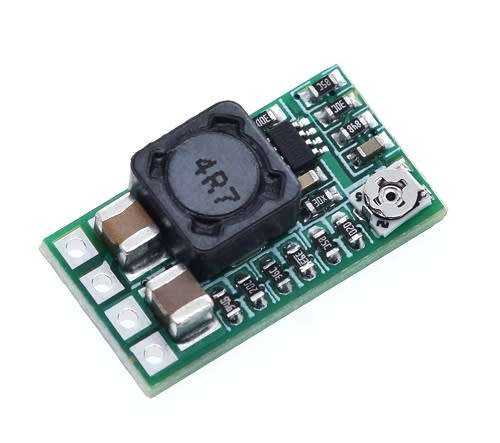

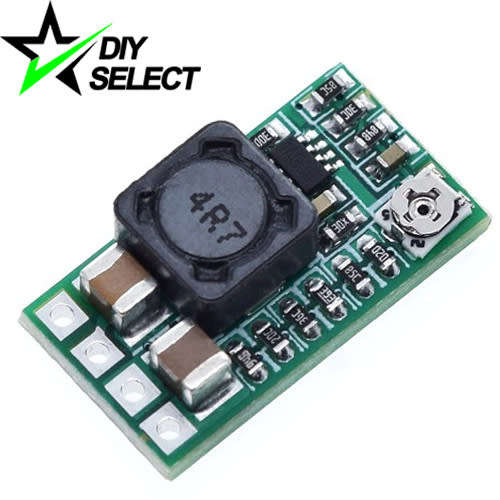

Step Down Buck Converter 3A (4.5-24V to 1.8-17V Adj) 1.8V,2.5V,3.3V,5V,9V,12V Fixed **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Step Down Voltage 3A (4.5-24V to 0.8-17V):
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Input Voltage: DC 4.5-24V
Output Voltage: Integration adjustable and fixed output, back side can choose fixed output voltage
Adjustable Range: 1.8-17V, fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (max), (1.5A for long time use)
Transform Efficiency: 97.5%(max) (6.5 to 5V 0.7A)
Switch Frequency: 500KHz
Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
Static Current: 0.85MA
Load Adjust Rate: ±1%
Voltage Adjust Rate: ±0.5%
Dynamic Response Speed: 5% 200uS
Output Overvoltage Protection: No
Output Short Circuit Protection: Yes
Input Transposition Protection: No
Enable Control: Yes
Connecting Type: Soldering
Soldering Hole Space: 2.54mm
