Step Down Buck Converter 3A LM2596 with Display **LOCAL STOCK**
Sold

Step Down Buck Converter 3A LM2596 with Display **LOCAL STOCK**

8 were available / new
R70.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
STE330
Bob Shop ID
500293925

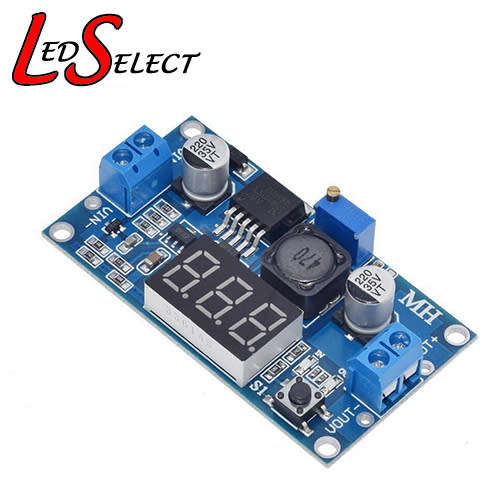

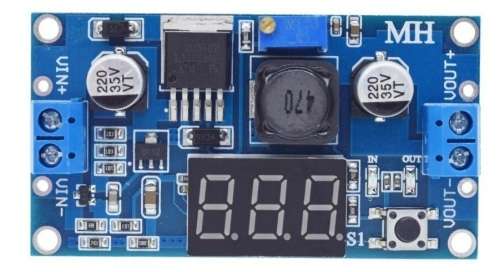

Step Down Buck Converter with Voltage Display:

Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator



Specifications:

Input Voltage: 4.5-35V DC
Output Voltage: Continuously adjustable (1.25-37V adjustable)
Output Current: 3A Max (If more than 15W, please install the heat sink)
Minimum Voltage Difference: 2V
Output Power: Natural cooling 15W
Conversion Efficiency: 80% (the higher the output voltage, the higher the efficiency)
Operating Temperature: Industrial (-40 deg to +85 deg) (ambient temperature more than 40 deg, lower power use, or add heat sink)
Connect Method: Terminal for wires
Input: IN+ input Positive is, IN- input negative
Output: OUT+ output is positive, OUT- output negative

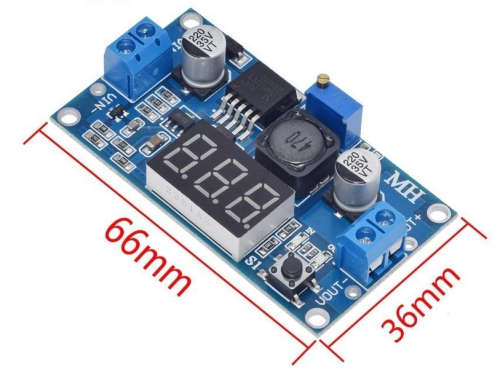

Module Size: 66 x 36 x 13mm
