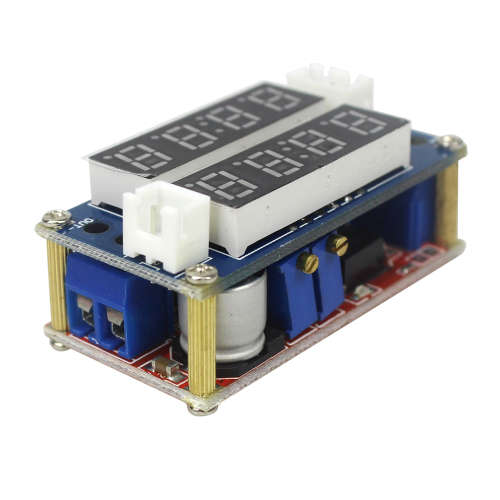

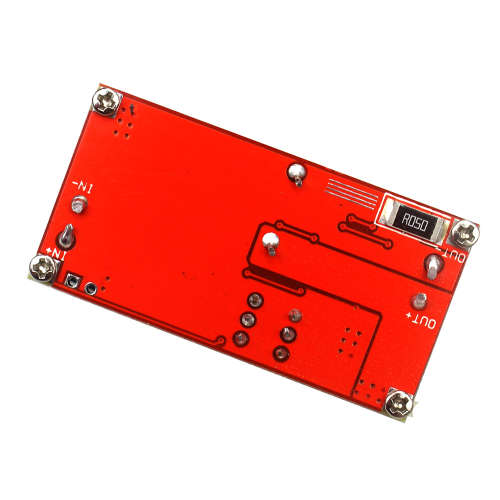

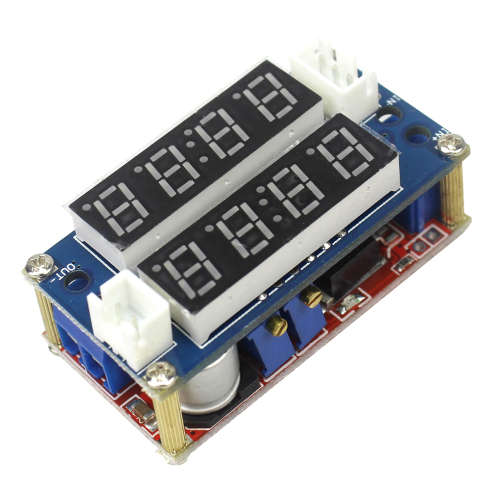

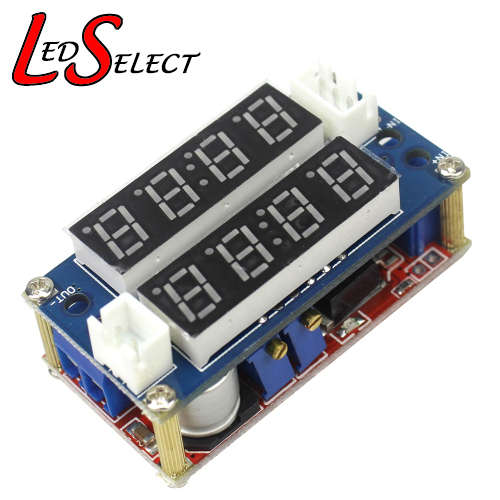

Step Down Buck Converter 5A XL4015 Display **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Step Down Voltage & Current with Display Power Supply Module:
Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator
Specifications:
Load Regulation: ± 0.5%
Output Ripple: 50mV (max) 20M bandwidth
Switching Frequency: 300KHz
Output Current: adjustable maximum 5A
Output Voltage: 0.8V-30V
Input Voltage: 5V-32V
Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module
Application:
1. Use as a step-down modules with overcurrent protection capabilities:

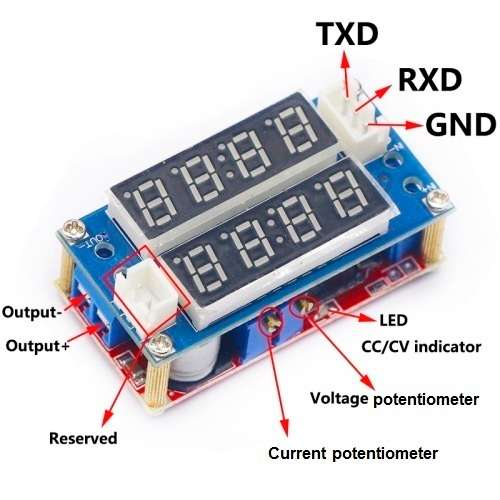

-Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
-Adjust the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
-Connected to the load.
2. Use as a battery charger:
-Determine the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)
-Adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
Adjust the “current potentiometer” so that the output current reaches a predetermined Charging current value.
-While charging, the battery current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
3. Use as a LED constant current driver module:
-Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
-Adjust the “current potentiometer” so that the output current reaches a predetermined LED operating current.
-Connect LED, work
