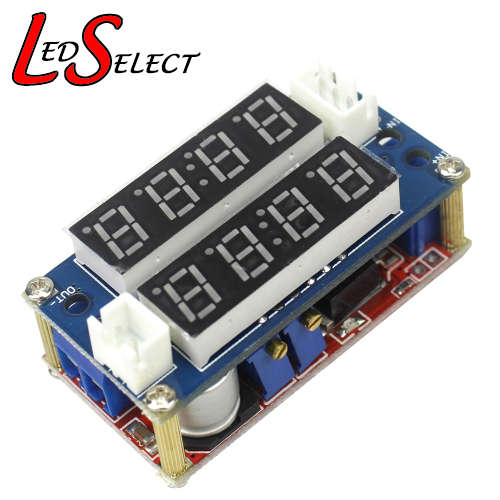

Name: Step Down Buck Converter 5A XL4015 Display **LOCAL STOCK**
SKU: STE375
Price: 139.00 ZAR
Availability: SoldOut

Step Down Buck Converter 5A XL4015 Display **LOCAL STOCK**

2 were available / new

R139.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

STE375

Bob Shop ID

532557957

Step Down Voltage & Current with Display Power Supply Module:

Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator

Free combined shipping for additional orders placed in our new store "DIY SELECT" https://bidorbuy.co.za/seller/4397469

Specifications:

Input Voltage: 5-32V
Output Voltage: 1.3-30V
Output Current: Adjustable maximum 5A
Load Regulation: ± 0.5%
Output Ripple: 50mV (max) 20M bandwidth
Accuracy Efficiency: Up to 96%
Switching Frequency: 300KHz
Rectification: non-synchronous rectification
Display Colour: Red and Blue
Size: 51 x 27 x 14mm

Application:

1. Use as a step-down modules with overcurrent protection capabilities:

-Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
-Adjust the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
-Connect Input voltage. Short circuit output to set the output current.

2. Use as a battery charger:

-Determine the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)
-Adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
Adjust the “current potentiometer” so that the output current reaches a predetermined Charging current value.
-While charging, the battery current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, Charging led light is turned off, the Charged led light is on, which means that the battery is fully charged)

3. Use as a LED constant current driver module:
