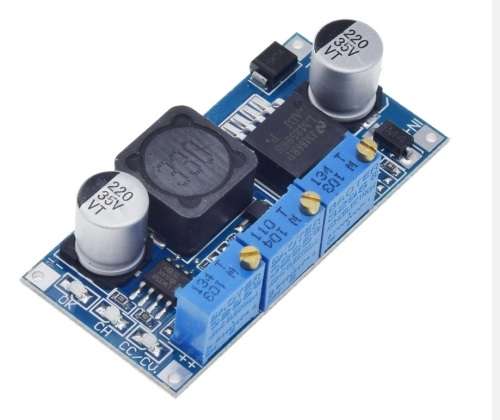

Name: Step Down Buck Converter Charger LM2596 3A **LOCAL STOCK**
SKU: STE340
Price: 34.00 ZAR
Availability: SoldOut
Rating: 5 (2 reviews)

Step Down Buck Converter Charger LM2596 3A **LOCAL STOCK**

4 were available / new

R34.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

2 ratings

Product code

STE340

Bob Shop ID

431686010

DC-DC Step Down Adjustable Voltage & Constant Current Driver/Battery Charger:

Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator

Specifications:

Input Voltage: 5-35 V
Output Current: Adjustable constant current 150Ma -3A Max. (Use a Heat sink when at 3A for better heat dissipation)
Output Voltage: Continuously adjustable from 1.25 V to 30V
Size: (L x W x H): 48 x 23 x 12mm

Indicator Light:

Constant Current: Indicator (red)
Charging: Indicator (red)
Charged Full: Indicator (green)

Applications:

High-power LED constant current drive
Lithium battery charger (including ferroelectric)
4V, 6V, 12V, 14V, 24V battery charger
Nickel cadmium, nickel metal hydride battery pack charger
Solar panels and wind turbines

Battery Use:

Make sure of the voltage and current of the battery you need to charge
Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage

Potentiometer Adjustment Direction:

Clockwise (increase), counterclockwise (decrease)
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
The charge current of transfer lamp is default 0.1 times of the charging current (constant current value)
Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)

LED Constant Current Driver Use:

Make sure operating current and Max operating Voltage of the LED you need to drive
Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected LED operating current
Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED)
LM2596 DC-DC StepDown Adjustable Power Supply Module
