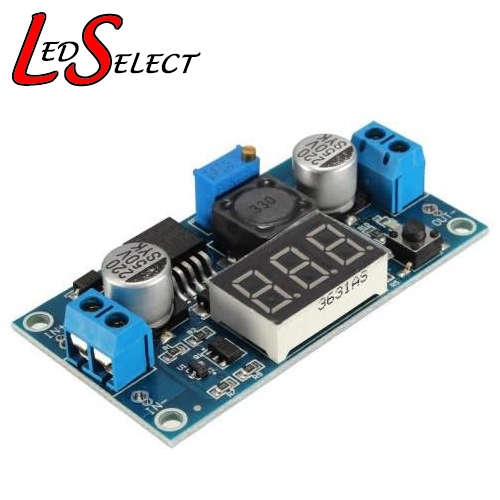

Step Down Buck Converter Charger Voltage 3A with Display **IN STOCK**

Step Down Voltage Driver with Voltage Display:

Specifications:

Input Voltage: 4-35V
Output Voltage: Continuously adjustable(1.25-25V unload adjust)
Output Current: 3A Max(If more than 15W, please install the heat sink)
CC Range: 0-2A (adjustable)
Revolving Light Current: CC value * (1%-100%), default is 0.1 times
Minimum Voltage Difference: 2V
Output Power: Natural cooling 15W
Conversion Efficiency: 80% (the higher the output voltage, the higher the efficiency)
Operating Temperature: Industrial (-40 deg to +85 deg) (ambient temperature more than 40 deg, lower power
use, or add heat sink)Full load temperature rise: 45 deg
Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
Output Short Circuit Protection: Yes, constant current.
Connect Method: Can solder on the PCB with wire directly
Input: IN+ input Positive is, IN- input negative
Output: OUT+ output is positive, OUT- output negative
Module Size: 50 x 37 x 13mm
