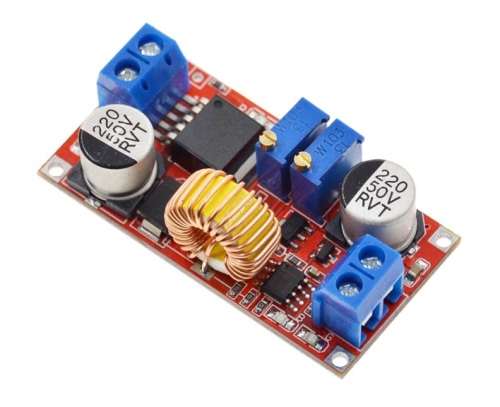

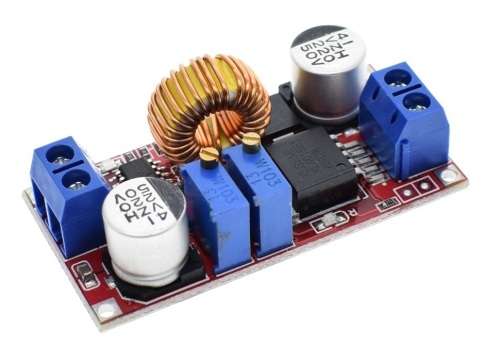

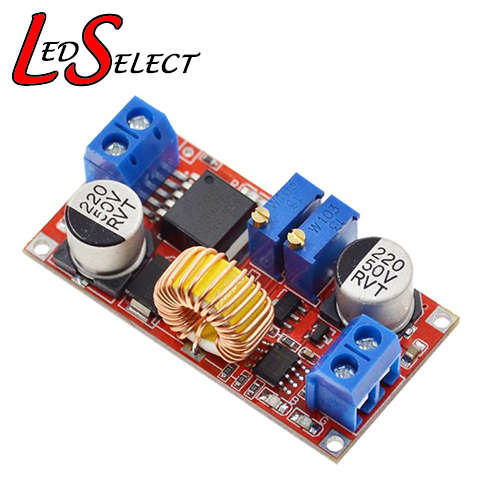

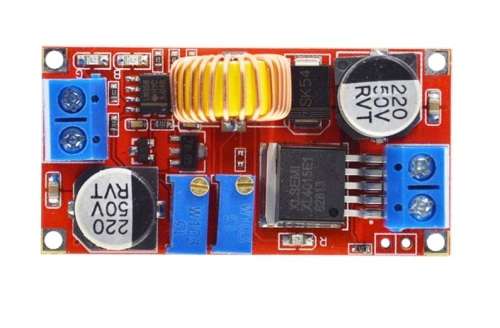

Name: Step Down Buck Converter Voltage + Current 5A XL4015 **LOCAL STOCK**
SKU: STE370
Price: 41.00 ZAR
Availability: SoldOut

Step Down Buck Converter Voltage + Current 5A XL4015 **LOCAL STOCK**

12 were available / new

R41.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

STE370

Bob Shop ID

456915420

5A Voltage & Current Step Down Power Supply Module:

Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator

Specifications:

Input Voltage Range: 6 - 38V DC (Input voltage must not exceed 38V)
Output Voltage Range: 1.25-36VDC (Adjustable)
Output Current: 0-5A (Adjustable)
Output Power: 75W
Efficiency: Up to 96%
Size: 61.7 x 26.2 x 15mm

Application:

1. Use as a step-down modules with over current protection capabilities

Usage:

(1) Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2) Use a multi meter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined over current protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
(3) Connect to the load.

2. Use as a battery charger

Usage:

(1). Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)
(2). Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
(3). use a multi meter to measure the output short-circuit current, while regulating the “current potentiometer” so that the output current reaches a predetermined Charging current value.

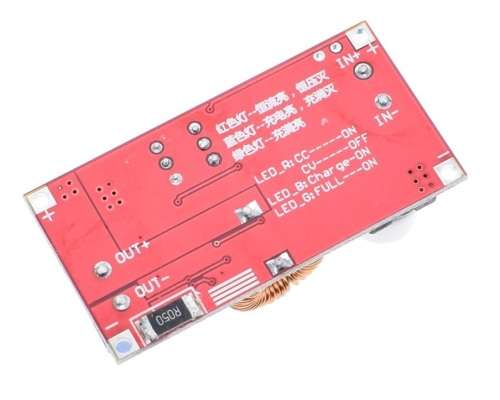

(4). Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
(5). Connect to the battery charge.

3. Use as a LED constant current driver module

Usage:

(1). adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2). use a multi meter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined LED operating current.
(3). Connect LED, work.
