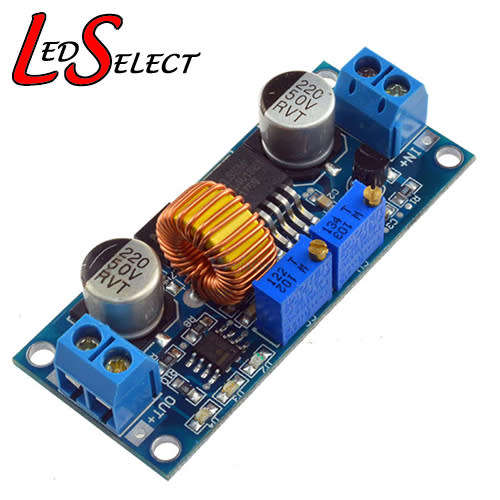

Step Down Buck Converter Voltage + Current 5A XL4015 **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
5A Voltage & Current Step Down Power Supply Module:
Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator
Specifications:
Input Voltage Range: 6 - 38V DC
Output Voltage Range: 1.25-36VDC (Adjustable)
Output Current: 0-5A (Adjustable)
Output Power: 75W
Efficiency: Up to 96%
Size: 61.7 x 26.2 x 15mm
Application:
1. Use as a step-down modules with over current protection capabilities
Usage:
(1) Adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2) Use a multi meter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined over current protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
(3) Connect to the load.
2. Use as a battery charger
Usage:
(1). Make sure you need to charge the battery float voltage and charging current; (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)
(2). Under no-load conditions, adjust the “Voltage potentiometer” so that the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
(3). use a multi meter to measure the output short-circuit current, while regulating the “current potentiometer” so that the output current reaches a predetermined Charging current value.
(4). Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
(5). Connect to the battery charge.
3. Use as a LED constant current driver module
Usage:
(1). adjust the “voltage potentiometer” so that the output voltage reaches the value you want.
(2). use a multi meter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined LED operating current.
(3). Connect LED, work.
