Step Down Buck Converter Voltage LM2596 3A HVS High Voltage **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Step Down High Voltage Input DC Adjustable 15W 3A (3-55V to 2-32V):
Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator
Specifications:

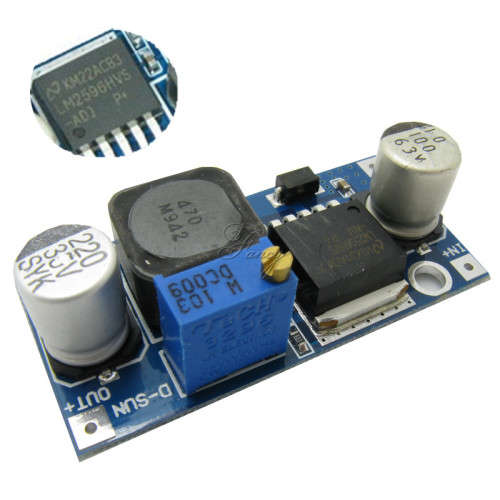

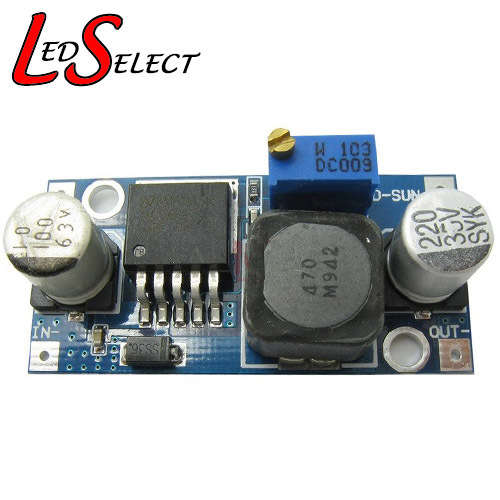

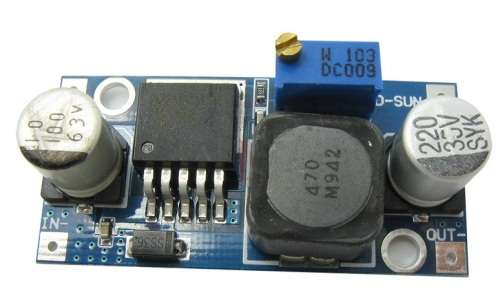

Type/Name: LM2596HVS DC-DC step-down module
Input Voltage: 4.5V - 55V
Output Voltage: 3V - 32V
Output Current: 3A (max)
Conversion Efficiency: 92% (the highest)
Output Ripple: <30mV
Switching Frequency: 150KHz
Operating Temperature: -45 ° to +85 °
Size: 43 x 21 x 14mm
Input Voltage Range: DC4.5V to 55V (input voltage must be greater than the output voltage to 1.5V or higher)
Output Voltage Range: DC 3V to 32V voltage is continuously adjustable, high efficiency (up to 92%)
* If the Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add 14x14x5mm heat sink to IC Chip.
* This is the LM2596HVS Not the LM2596S Chip
