Step Down DC Adjustable Voltage & Constant Current 3A (5-35V to 2-30V) Driver/ Battery Charger

Input Voltage: 5-35V

Output Current:
Adjustable constant current 150Ma -3AMax.(more than 3A, preferably with a heat sink)
Output Voltage: Continuously adjustable from 1.25 V to 30V

Size: (L x W x H): Approx. 1.9 x 0.95 x 0.5 inch / 4.8 x 2.4 x 1.3cm

Indicator Light :
Constant current indicator(red)
Charging indicator(red)
Charged full (green)


Applications:
High-power LED constant current drive
Lithium battery charger (including ferroelectric)
4V, 6V, 12V, 14V, 24V battery charger
Nickel cadmium, nickel metal hydride battery pack charger
Solar panels and wind turbines


Battery Use:
Make sure of the voltage and current of the battery you need to charge
Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage
Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease)
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
The charge current of transfer lamp is default 0.1 times of the charging current (constant current value)
Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)

LED Constant Current Driver Use:
Make sure operating current and Max operating Voltage of the LED you need to drive
Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected LED operating current
Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED)

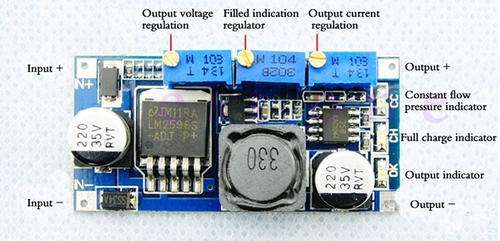

LM2596 DC-DC StepDown Adjustable Power Supply Module
