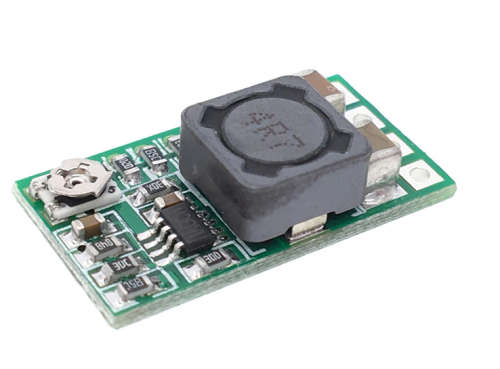

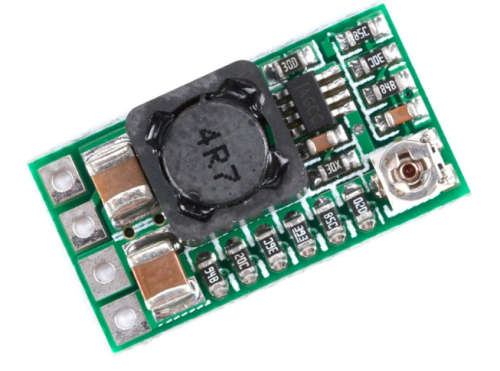

Step Down Voltage 3A Buck Converter (4.5-24V to 0.8-17V) Adjustable **LOCAL STOCK**

Step Down Voltage 3A (4.5-24V to 0.8-17V):

Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator

Specifications:

Input Voltage: DC 4.5-24V

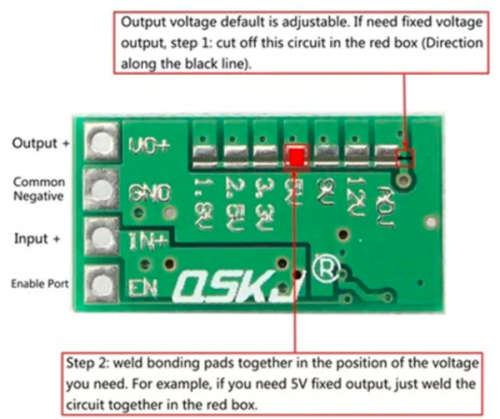

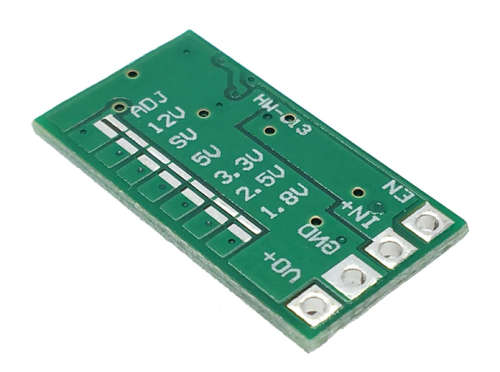

Output Voltage: Integration adjustable and fixed output, back side can choose fixed output voltage
Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (max),actual testing input 12V output 1.5A
Transform Efficiency: 97.5%(max) (6.5 to 5V 0.7A)
Switch Frequency: 500KHz
Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
Static Current: 0.85MA
Load Adjust Rate: ±1%
Voltage Adjust Rate: ±0.5%
Dynamic Response Speed: 5% 200uS
Output Overvoltage Protection: No
Output Short Circuit Protection: Yes
Input Transposition Protection: No
Enable Control: Yes
Connecting Type: Soldering
Soldering Hole Space: 2.54mm
