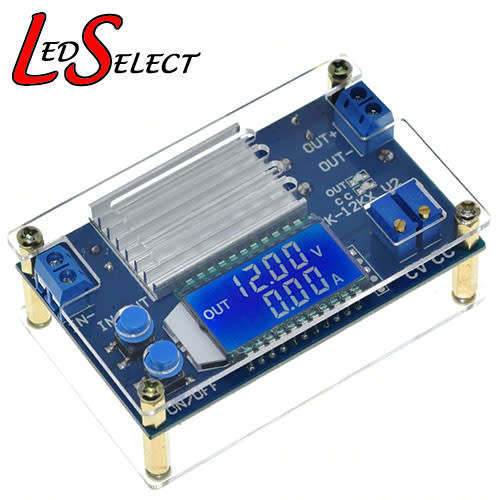

Step Down Voltage & Current 5.5-32V 12A with Display:
Category: 3200312645 / 3204312645 - Step Up Down / Voltage Regulator
Specifications:
Input Voltage: 5.5 - 32V (limit 35V; the lowest input 4V to achieve buck, but less than 5.3V input voltage and current measurements inaccurate)
Output Voltage: 1.2 - 32V (must ensure that the input voltage is higher than the output voltage, the minimum voltage difference between the two is 0.8V)
Output Current: long-term stable work in the 8A, strengthen the heatsink cooling can reach 12A
Output Power: Natural cooling 120W (8A or less), to enhance cooling 160W
Voltage Display: resolution 0.05V, range 0-32V
Current Display: resolution 0.01A, range 0-12A
Conversion Efficiency: about 96%
Working Current: 25mA or so
Soft Start: Yes (very powerful with load module may fail to start)
Input Reverse Protection: Yes
Output Anti-inrush: None (if you charge the battery, the first module to power then the battery, and to ensure that the battery voltage is lower than the output voltage; if the conditions are positive output in series with anti-reflux diode)
Short Circuit Protection: Yes
Size: 82 x 52 x 32mm

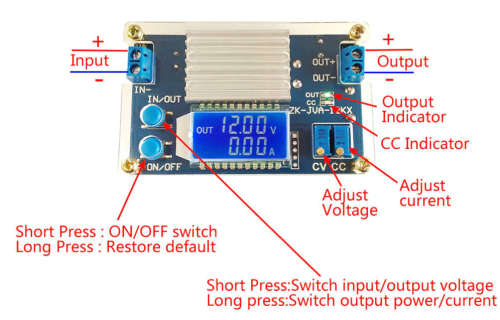

LCD can display input and output voltage, output current output power
