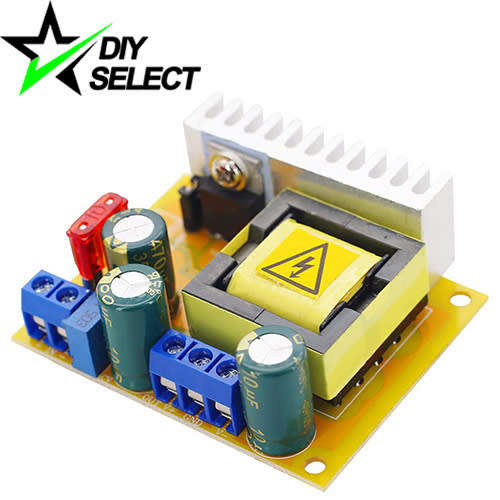

Name: Step Up Boost Converter 10-32V DC to 45-390V DC 40W Adjustable **LOCAL STOCK**
SKU: STE150
Price: 155.00 ZAR
Availability: SoldOut

Step Up Boost Converter 10-32V DC to 45-390V DC 40W Adjustable **LOCAL STOCK**

2 were available / new

R155.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8405

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

STE150

Bob Shop ID

583493348

Step Up Boost DC-DC Voltage 10-32V to 45-390V DC:

Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337

Specifications:

High Voltage boost module
Module Properties: non-isolated step-up module

Input Voltage: 10-32V DC input
Input Current: 5A (MAX)
Quiescent Current: 15mA (when 12V to 50V, the higher the output voltage, the greater the static current.)
Output Voltage: 45-390V DC continuously adjustable.
Output Current: 0.2A MAX (With the input, output, pressure related. The higher the input voltage, the smaller the output current.)
Output Power: 40W (peak 70W)
Working Temperature: -40 ~ + 85 Degrees (ambient temperature is too high, please enhance heat dissipation)
Operating Frequency: 75KHz
Conversion Efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short Circuit Protection: Yes. (The input fuse 10A, please do not short circuit output, otherwise damage to the rectifier.
Over-current Protection: yes. If the input current is more than 4.5A, reduce the output voltage.
Over-voltage Protection: yes. If the output voltage is more than 410V, reduce the output voltage.
Input Reverse Polarity Protection: Yes (No self-healing, connect reverse burning fuse, try not reverse connect.)
Module Dimensions: 60 x 50 x 22 m

Applications:

1, Capacitor Charging
2, Electronic equipment supply power, can set voltage voltage output value.
3, Withstand voltage test power supply, glow tube power supply.
4, Exterminate rats (Shock)

* Warning! This module has a high output voltage. On people or animals it can be life-threatening. Please pay attention to safety precautions.
