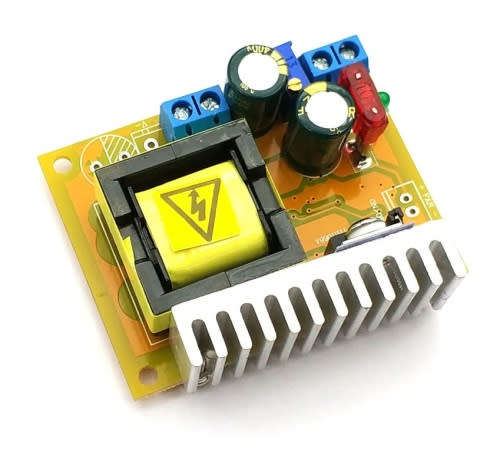

Step Up Boost Converter 10-32V DC to 45-390V DC 40W **LOCAL STOCK**

Step Up Boost DC-DC Voltage 10-32V to 45-390V DC:

Specifications:

High Voltage boost module

Module Properties: non-isolated step-up module
Input Voltage: 10-32V DC input
Input Current: 5A (MAX)
Quiescent Current: 15mA (when 12V to 50V, the higher the output voltage, the greater the static current.)
Output Voltage: 45-390V DC continuously adjustable.
Output Current: 0.2A MAX (With the input, output, pressure related. The higher the voltage, the smaller the output current.)
Output Power: 40W (peak 70W)
Working Temperature: -40 ~ + 85 Degrees (ambient temperature is too high, please enhance heat dissipation)
Operating Frequency: 75KHz
Conversion Efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short Circuit Protection: Yes. (The input fuse 10A, please do not short circuit output, otherwise damage to the rectifier.
Overcurrent Protection: yes. If the input current is more than 4.5A, reduce the output voltage.
Overvoltage Protection: yes.  If the output voltage is more than 410V, reduce the output voltage.
Input Reverse Polarity Protection: Yes (No self-healing, connect reverse burning fuse, try not reverse connect.)
Module Dimensions: 60 x 50 x 22 m

Applications:

1, Capacitor Charging
2, Electronic equipment supply power, can set voltage voltage output value.
3, Withstand voltage test power supply, glow tube power supply.
4, Exterminate rats (Shock)
