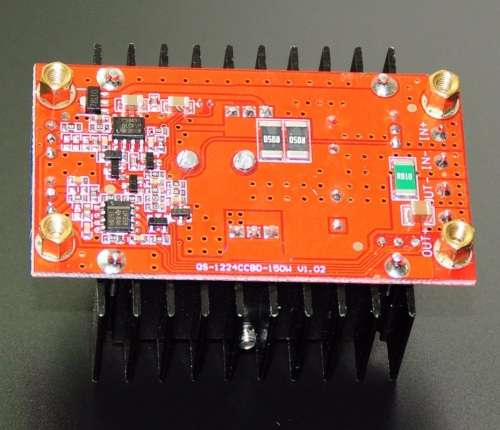

Step Up Boost Converter 150W 10A Voltage + Current **LOCAL STOCK**

DC-DC 100W Constant Current/ Voltage Boost Step-up Module Mobile Power Supply LED Driver:

Category: 3200312645 / 3202312645 - Step Up Down / Voltage Regulator

Specifications:

Input Voltage: 10-33V
Output Voltage: 11-35V (adjustable)
Output Current: 10A (MAX)
Output Power: natural cooling 90W (MAX), enhance heat dissipation 100-150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
Conversion Efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full Load Temperature Rise: 45°c
No-load Current: 25mA typical
Voltage Regulation: ± 0.5%
Dynamic Response Speed: 5% 200uS
Short Circuit Protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Size: 65 x 34 x 24mm

Applications:

1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 11-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
3. Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery.

* Voltage can be set by connecting Multimetermeter direct to output, but Current can only be set using Multimeter inline (not direct). Please turn potentiometer to lowest current setting before setting higher while measuring current
