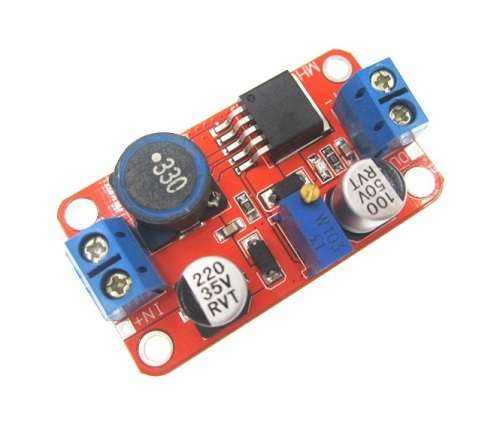

Name: Step Up Boost Converter Voltage 3A (Auto Stabilized Output) **IN STOCK**
SKU: STE125
Price: 44.00 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

Step Up Boost Converter Voltage 3A (Auto Stabilized Output) **IN STOCK**

18 were available / new

R44.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

STE125

Bob Shop ID

292528816

Step Up Voltage 3A Auto stabilized voltage output:

Specifications:

Model Specifications: XL6019 Boost module
Module Properties: Non-isolated step-up
Rectification: Non-Synchronous Rectification
Input Range: Limits: 3-40V, recommended values: 3V-35V
Output Range: Limits: 5-45V, recommended values: 5V-40V (via rotary potentiometer)
Input Current: Limits: 0-5A, recommended values: 0-3A
Conversion Efficiency: up to 94%
Open Frequency: 220KHz, the second generation of switching power supply technology
Output Ripple: Less than 100mV
Working Temperature Limits: -40 to +150 Degrees C the recommended values: -20 to +85 Degrees C
Reverse Polarity Protection: Protection against reverse input 40V
Size: 50x28x13mm

The output 5V/12V/24V can be adjusted, performance beyond LM2577. Using conventional topology BOOST as a constant voltage output, the internal integration of MOSFET, peripheral devices, low system cost, built-in over temperature protection, over current protection of the full set of reliability protection circuit

The use of conventional topology BOOST complete set of constant voltage output, the internal integration of MOSFET, peripheral devices less, the system cost is low.

Wide voltage range input, the input voltage up to 35V

The output voltage can be adjusted, the highest can support 40V

Built-in over temperature protection, over current protection of the full set of reliability protection circuit, high reliability

System conversion efficiency can reach more than 90% and easy to heat design

Suitable for 30W within the boost application
