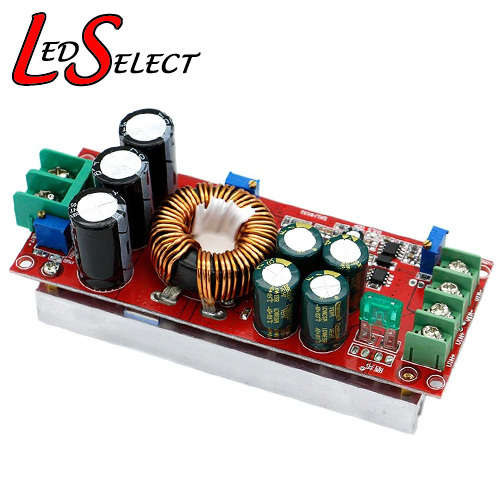

Step Up Boost Converter Voltage Current 20A 1200W 10-60V to 12-83V Heatsink **LOCAL STOCK**

Step Up Voltage + Current 20A 1200W 10-60V to 12-83V:

Category: 3200312645 / 3202312645 - Step Up Down / Voltage Regulator

Specifications:

Module Properties: Non-isolated boost step-up module
Input Voltage: 8 - 60V
Input Current: 20A
Quiescent Current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output Voltage: 12-80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Output Power: Input 12V * 20A = 240W, Input 24V * 20A = 480W
Working Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating Frequency: 150KHz
Conversion Efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
Overcurrent Protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
Short Circuit Protection: Yes (input 20A fuse) double short circuit protection, the use of more security
Input Reverse Polarity Protection: None, (if necessary, please enter the string into the diode)
Output Counter Filling: Yes, for charging plus blocking diode is not required
Installation: Four 3mm screws
Connection: Solderless terminals output
Size: Approx. 130 x 52 x 15mm

- Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
- If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel.
- The current per module can be adjusted to 15A.
