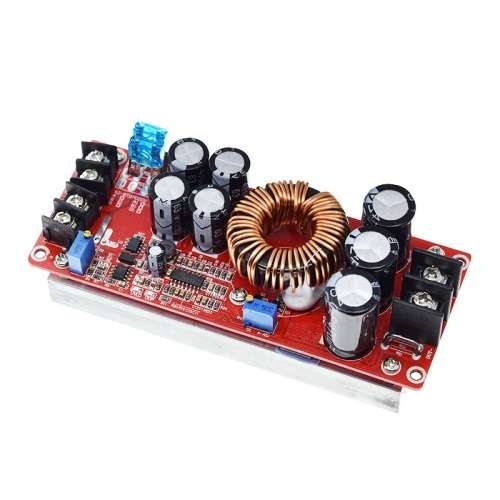

Step Up Boost Converter Voltage Current 20A 1200W 10-60V to 12-83V Heatsink **LOCAL STOCK**

Step Up Voltage + Current 20A 1200W 10-60V to 12-83V:

Specifications:

Module Properties: Non-isolated boost step-up module
Input voltage: 8 - 60V
Input Current: 20A
Quiescent Current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output Voltage: 12 - 80V continuously adjustable
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5 - 20A

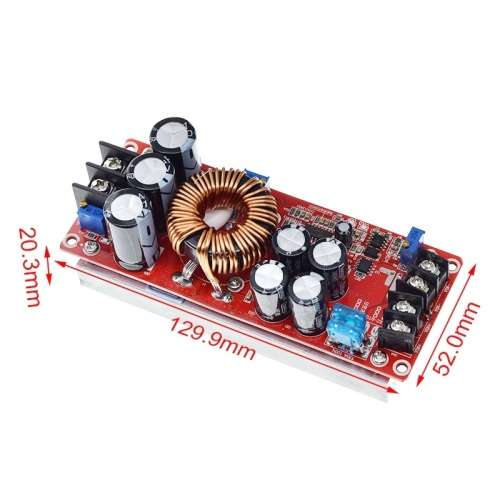

Size: Approx. 116 x 52 x 15mm

- Input 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
- If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel.
- The current per module can be adjusted to 15A.
