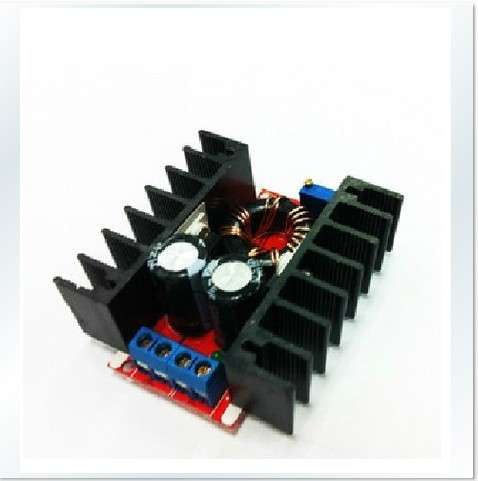

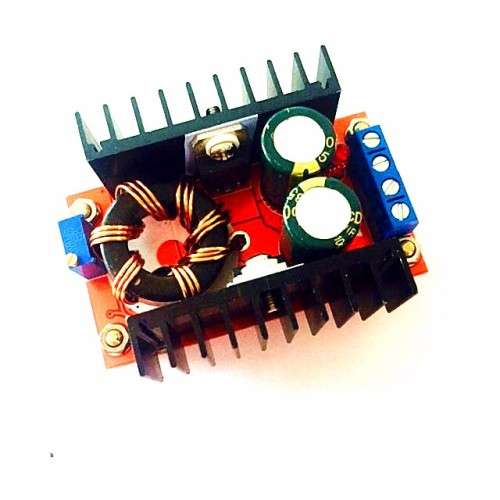

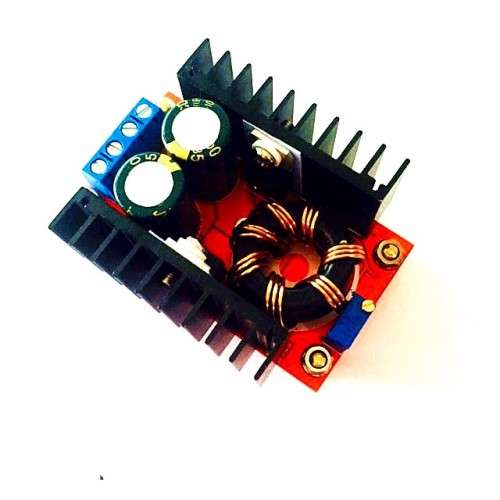

150W Boost Converter Step Up Voltage Charger Module:

DC-DC 10-32V to 12-35V

• Properties: non-isolated step-up module (BOOST)

• Size: 65x56.5x23mm

• Input voltage :10-32V

• Output voltage: 12-35V (adjustable)

• Output Current: natural cooling 6A (MAX), enhance heat dissipation for 10 (MAX)
• Output power: natural cooling 100W (MAX), enhance heat dissipation for 150W (MAX)

• Easy to drive 65W 90W dual-core notebook.

• Use a 12V battery to drive a 19V 3.42A notebook

• Conversion efficiency: 94%

• Output Ripple: 2% (MAX) 20M-bandwidth

• Operating Temperature: Industrial (-40°c to +85°c) (if temperature exceeds 40°c, lower power use, or enhance heat dissipation)

• Full load temperature rise: 45°c

• No-load current: 25mA typical

• Voltage regulation: ± 0.5%

• Dynamic response speed: 5% 200uS

• Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

• Input Reverse Polarity Protection: None (Please Series diode at the input port.)


Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be   14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
