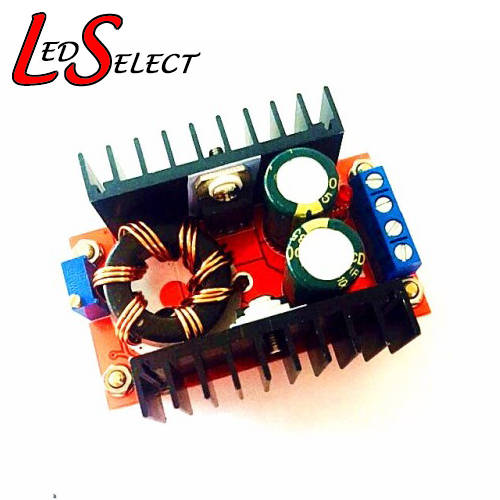

Step Up Boost DC Adjustable Voltage 150W 10A (10-32V to 12-35V) **IN STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
150W Boost Converter Step Up Voltage Charger Module:
Category:
Specifications:
Properties: Non-isolated step-up module (BOOST)
Size: 65 x 56.5 x 23mm
Input Voltage: 10-32V
Output Voltage: 12-35V (adjustable)
Output Current: Natural cooling 6A (MAX), enhance heat dissipation for 10A (MAX)
Output Power: Natural cooling 100W (MAX), enhance heat dissipation for 150W (MAX)
Conversion Efficiency: 94%
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (if temperature exceeds 40°c, lower power use, or enhance heat dissipation)
Full load Temperature Rise: 45°c
No-load Current: 25mA typical
Voltage Regulation: ± 0.5%
Dynamic Response Speed: 5% 200uS
Short Circuit Protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery to drive a 19V 3.42A notebook
Some Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car Laptop Power Supply: connected to 12V power supply, output voltage regulation as your notebook need.
