Battery 18650 Charger Step up Boost 5V 8V 9V 12V 1.5A:
Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Input Voltage: 2.5V to V(OUT) The input voltage must be lower than the set output voltage

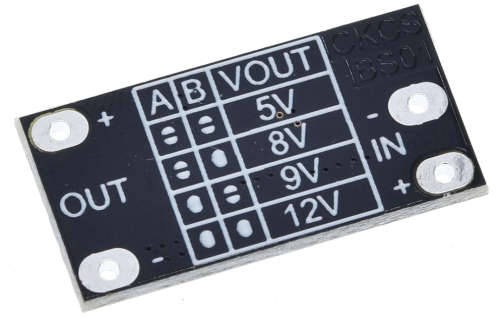

Output Voltage: Voltage can be set to 5V/8V/9V/12V by soldering the A + B, the default is 12V. See back of unit for voltage combinations.
Output Current: Take 3.7V lithium battery input as an example, it can output 5V 1.2A, 8V 0.7A, 9V 0.6A, 12V 0.5A. Make sure that the input current and output current do not exceed 1.5A.

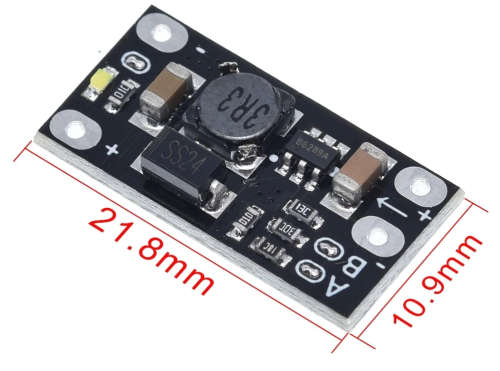

Size: 22 x 11mm
