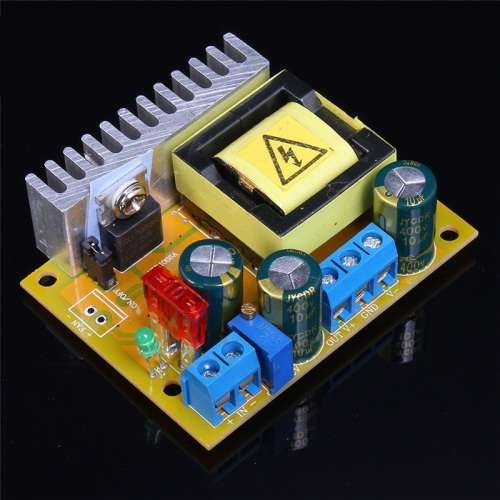

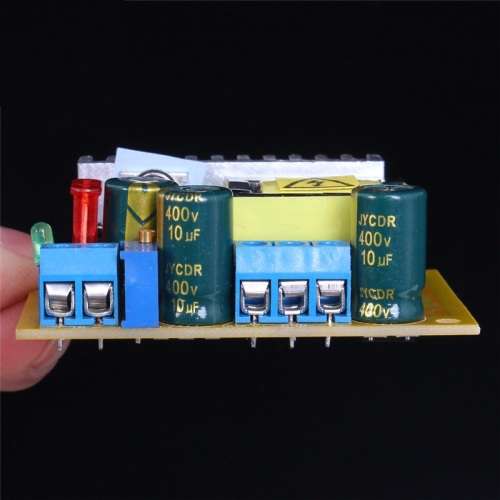

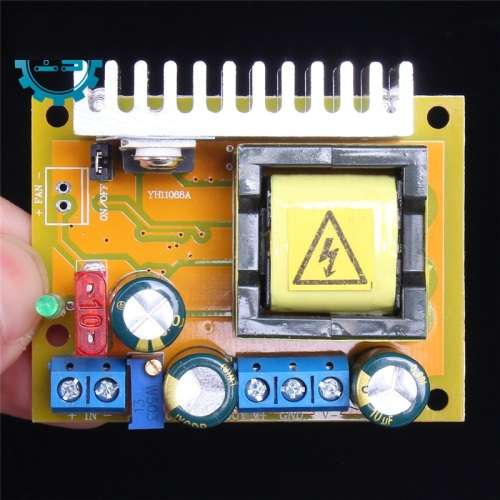

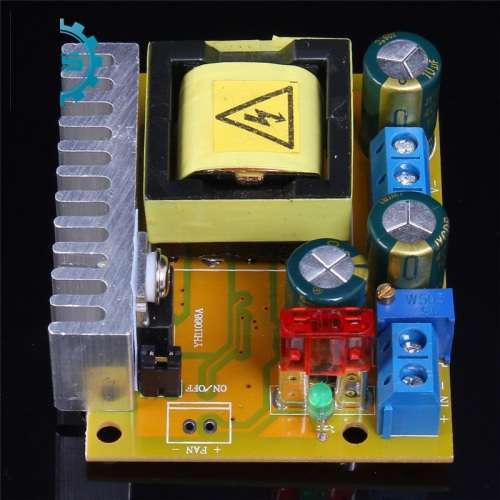

Step Up DC Adjustable Voltage 40W (10-32V to 45-390V) **IN STOCK**

Step Up Boost DC-DC Voltage 10-32V to 45-390V DC:

Specifications:

High Voltage boost module:

Module Properties: non-isolated step-up module
Input voltage: 10-32V DC input
Input Current: 5A (MAX)
Quiescent current: 15mA (when 12V to 50V, the higher the output voltage, the greater the static current.)
Output voltage: 45-390V DC continuously adjustable.
Output Current: 0.2A MAX (With the input, output, pressure related. The higher the voltage, the smaller the output current.)
Output Power: 40W (peak 70W)
Working temperature: -40 ~ + 85 Degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes. (The input fuse 10A, please do not short circuit output, otherwise damage to the rectifier.
Overcurrent protection: yes. If the input current is more than 4.5A, reduce the output voltage.
Overvoltage protection: yes.  If the output voltage is more than 410V, reduce the output voltage.
Input reverse polarity protection: Yes (No self-healing, connect reverse burning fuse, try not reverse connect.)
Module dimensions: 60 x 50 x 22 m

Applications:

1, for charging the capacitor.
2, for the electronic equipment supply power, can set voltage voltage output value.
3, Withstand voltage test power supply, glow tube power supply.
4, Exterminate rats.

Note:

The module output is high pressure, can have life risk to human, animal, please pay attention to safety during use
