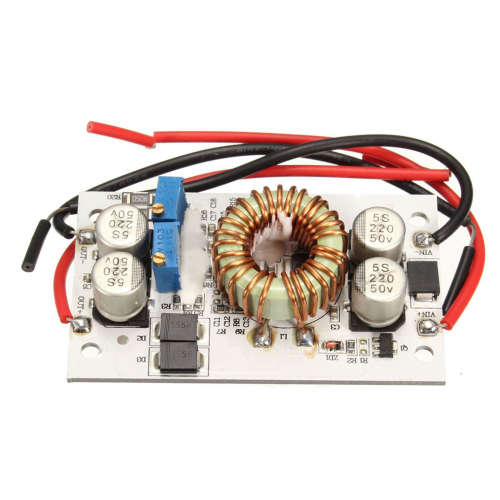

Step Up 200W DC-DC Adjustable Voltage & Current Driver/ Power Supply:
Module Properties: non-isolated step-up module (BOOST)
- Input voltage :8.5-48V
- Output voltage: 12-50V (adjustable)
- Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A)
- Output constant Current: 0.2 - 8A (please don't short the output to adjust the current)
- Easy to drive 65W 90W dual-core notebook.
- Conversion efficiency: 96%
- working frequency: 150KHZ
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C, lower power use, or to enhance heat dissipation)
- Dynamic response speed: 5% 200uS
- Input Reverse Polarity Protection: yes
- Size: 70*46*13m
