Step Up + Down, Voltage + Current:
Category: 3200312645 / 3208312645 - Step Up Down / Voltage Regulator
Free combined shipping for additional orders placed in our new store "DIY SELECT" https://bidorbuy.co.za/seller/4397469 |
Specifications:

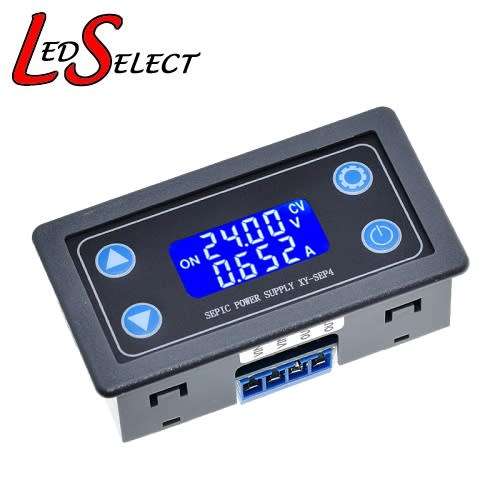

Model: XY-SEP4
Input voltage: DC 5-30V (less than 4.7V with under-voltage protection LVP)
Output Voltage: DC 0.5-30V
Output Current: 0-4A
Output Power: 35W under natural heat dissipation and 50W under air cooling
Voltage Accuracy: ±1%+1 word, resolution: 0.01V, self-calibration
Current Accuracy: ±1.5%+3 words, resolution: 0.001A, self-calibration
Conversion Efficiency: about 88%
Soft Start:
Input Reverse Connection Protection: Yes, Reverse Connection No Burning
Output anti-backfilling: Yes, it can be directly connected to the battery
Output Short Circuit Protection: Yes, it can be directly connected to the output terminal
Temperature Protection (OTP): Yes, 100 C
Working Frequency: 180KHZ
Used as a general boost-and-drop power supply with over-current protection capability
Use as battery charger or Use as a constant current drive module for high power LED
Key function:
Add key UP: Short press switch to display input/output voltage and long press to enter self-calibration interface
Reduce DOWN: Short-click Switch Display Current/Power/Capacity/Energy/Time
SET: Long Press Enter Settings Interface
Switch key ON/OFF: Short press on/off output; In the display voltage and current interface, long press on the set boot state (-ON: power on default opening, -OFF: power on default closing), in the capacity/energy/time interface, long press clear corresponding data.
Setting up interface operation instructions:
1. Press SET button to enter the setting interface.
2. The parameters are adjusted by UP/DOWN keys to support long press (fast increase/decrease) and short press SET keys to switch the parameters to be adjusted.
3. In the maximum capacity (OAH)/maximum energy (OPH)/maximum running time (OHP) interface, press the "ON/OFF" button to select the opening or closing of the corresponding function, and if closed, display "--";
4. In the maximum capacity (OAH)/maximum energy (OPH) parameter interface, long press the ON/OFF button to select the range of capacity (9.999Ah/99.99Ah/9999999Ah, 9.999Wh/99.999Wh/99999999Wh);
5. After setting the parameters, press the encoder potentiometer for a long time, exit the setting interface and save the parameters automatically.
Note: After product protection, output will be turned off, LCD will display the corresponding protection code (LVP/OVP/OCP/OPP/OAH/OPH/OHP) power chip itself also has various protection, if the chip itself is protected, OEP will be displayed.
