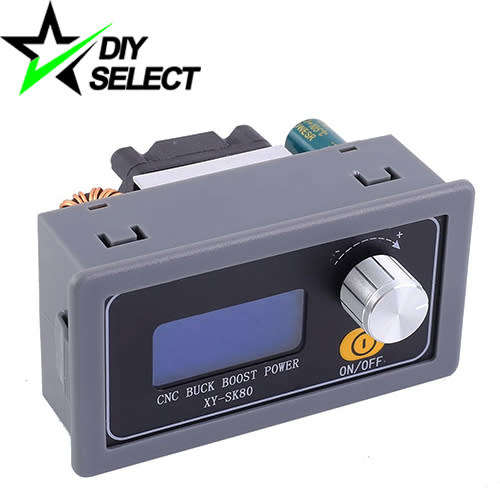

Step Up Down Boost Buck Converter 7-36V 5A 80W Panel Mount Display (XY-SK80) **LOCAL STOCK**

Step Up and Down Voltage and Current:

Specifications:

Working Voltage: 7 - 36V DC
Output Voltage: 0.6 - 36V DC
Output Current: 0 - 5.1A
Output Power: 80W
Voltage Display Precision: 0.5%
Voltage Display Resolution: 0.01V
Current Display Precision: 0.5%
Current Display Resolution: 0.001A
Conversion Efficiency: About 88%
Anti-reverse Protection: Yes
Anti-backflow Protection: Yes
Short Circuit Protection: Yes
Work Frequency: 180KHz
Working Humidity Range: 0%-95%RH

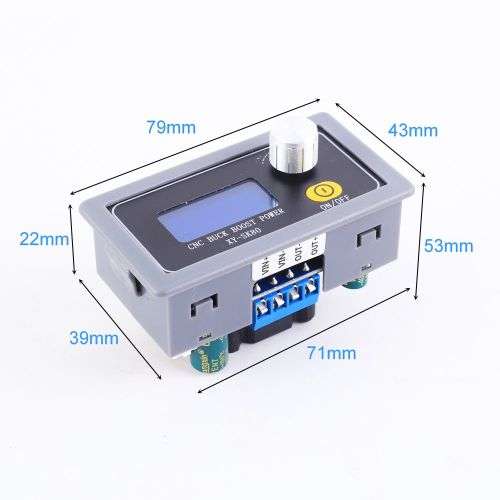

Size: 79 x 43 x 53mm

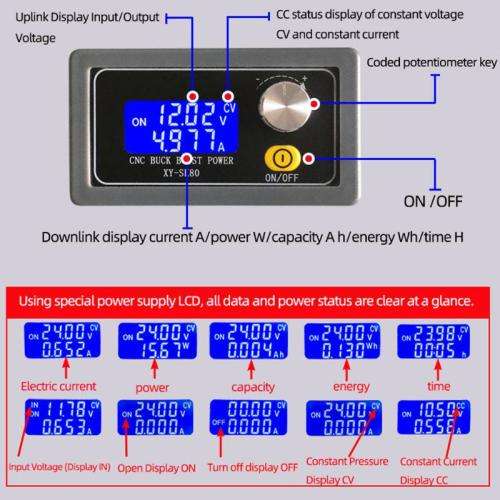

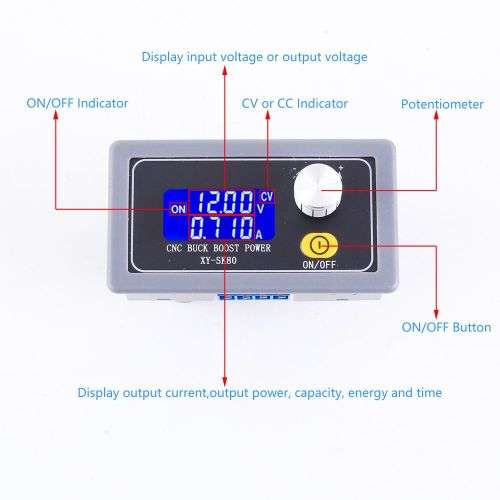

XY-SK80 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display. HD display input voltage and output voltage, current, power, display status, capacity, energy and time. Adjustable stable output voltage and current. Set output current to meet the demand. It can be used as ordinary buck power supply module, charger and LED constant current driver. Simple and efficient.

It supports solar charging and can be connected to solar battery.

Note:

1. Input undervoltage protection voltage is 4.7V. Module need re-power if input less than 4.7V.
2. It is a DC power module, cannot connect to AC power.
3. Connect the input before connecting the battery when use as charge and make sure output voltage is higher than battery voltage.
4. V IN and OUT can not be connect together.Otherwise module can not support constant current output.
5. Keep input more than 15V if need XY-SK80 output in maximum power.
6. Make sure input power is more than load power.
7. Step down the output power if module is hot.
