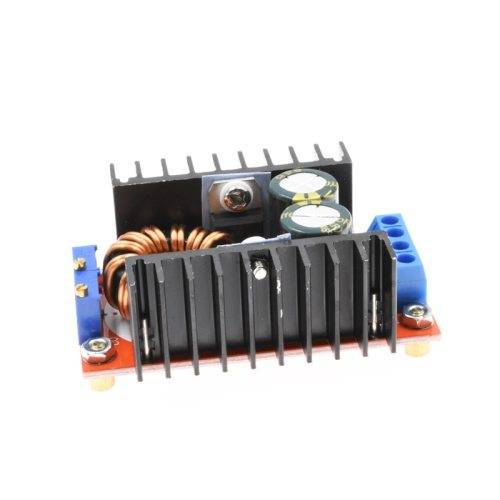

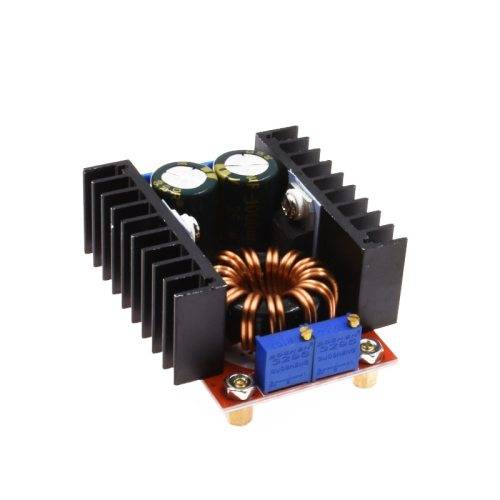

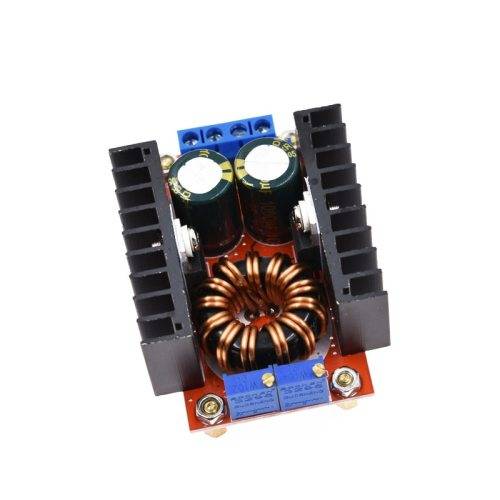

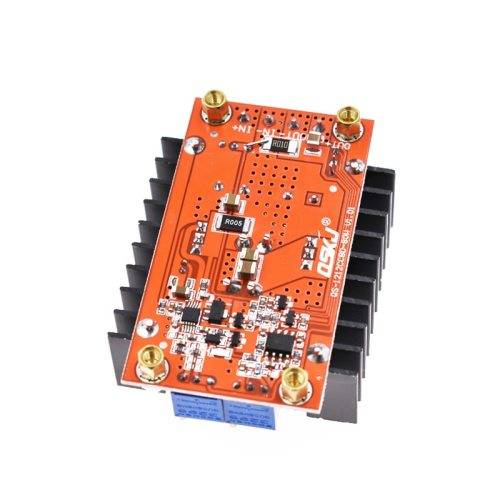

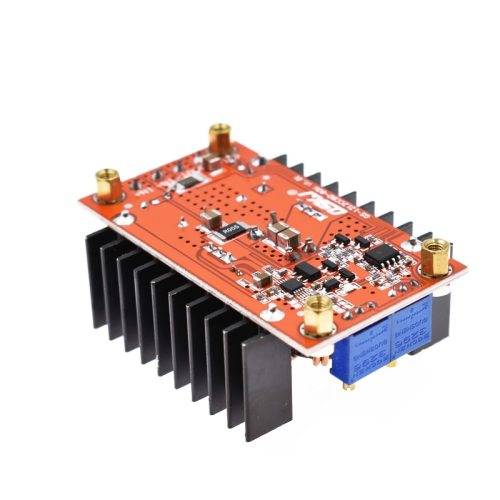

Step Up Down Boost Buck Converter 80W 8A Automatic Constant Voltage Output DC-DC **LOCAL STOCK**

Step Up and Down Voltage and Current Auto 80W 8A (9-35V 1-35V):

Category: 3200312645 / 3208312645 - Step Up Down / Voltage Regulator

Specifications:

 Input Voltage: 9-35V
 Output Voltage: 1-35V (adjustable)

Input Current: 12A
Output Current: 8A
Output Power: 80W
Conversion Efficiency: 14V to 12v 2A (90.5%)
                                        24V to 12v 2A (89.3%)
                                        28V to 24v 1.5A (90.5%)
Switching Frequency: VIN=12V VO=24V 3A (100KHZ)
No-load Current: VIN=14V VO=12V (6MA)
Output Short Circuit Protection: YES
Input Reverse Protection: NO
Working Temperature: -40 to 85°C
Size: 65 x 48 x 27mm

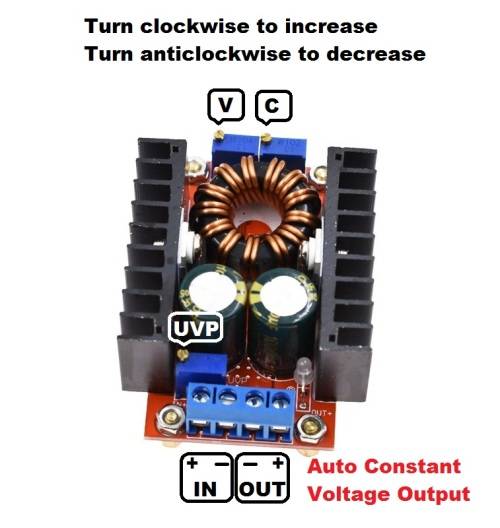

Adjustable Potentiometer:

CV voltage regulation, CC current regulation, UVP input undervoltage protection regulation

* Once you have adjusted the output voltage, it will remain the same and will not be affected by higher or lower input voltage.
