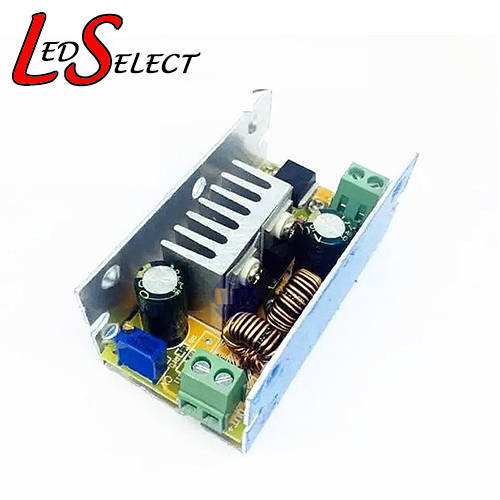

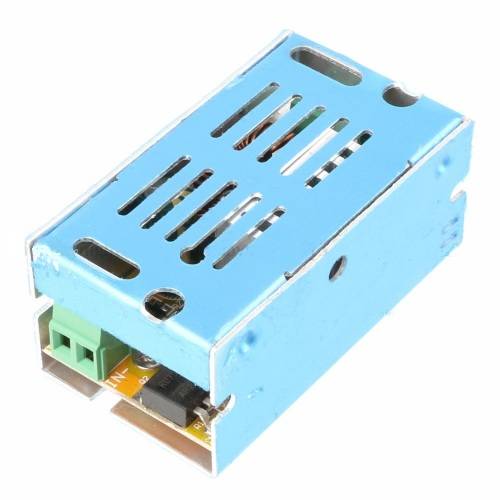

Automatic Step Up & Down Adjustable Voltage 5A:
Specifications:
Properties of Module: Non-isolated auto. boost & buck module
Input Voltage: 6-35V
Output Voltage: 1.25-35V Continuously adjustable stable output
Input Current: 0-7A
Output Current: 0-5A
Operating Temperature: -40~+85 Degrees Celsius
Switching Frequency: 110 KHz
Efficiency: 84% (max.)
Input Reverse Connection Protection: nos
Wiring Mode: V-IN for input, V-OUT for output
Module Size: 70 x 39 x 32mm
Once you have adjusted the output voltage, it will remain the same and will not be affected by higher or lower input voltage
