Step Up+Down, Voltage+Current, Auto, 9A (9-35V to 1-35V) **IN STOCK**

Step Up+Down Voltage+Current Auto 9A (9-35V 1-35V):

Category:

Specifications:

Input Voltage: 9-35V
Output Voltage: 1-35V (adjustable)
Output Current: 9A
Output Power: 80W
Conversion Efficiency: 14V to 12v 2A (90.5%)
                                    24V to 12v 2A (89.3%)
                                    28V to 24v 1.5A (90.5%)
Switching Frequency: VIN=12V VO=24V 3A (100KHZ)
No-load Current: VIN=14V VO=12V (6MA)
Output Short Circuit Protection: YES
Input Reverse Protection: NO
Working Temperature: -40 to 85°C
Size: 65 x 48 x 27mm

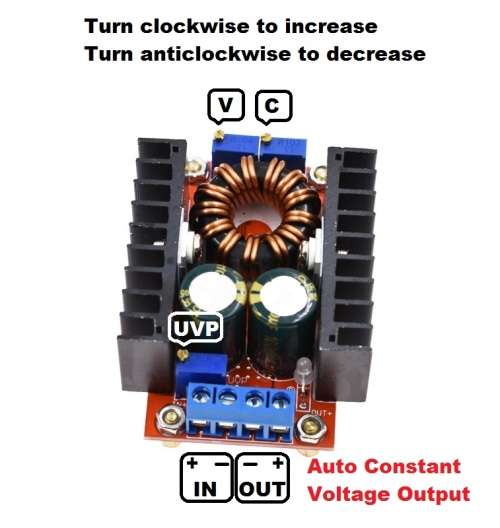

Wire Connection:

VIN+ input positive, VIN- input negative, OUT+ output positive, OUT- output negative

Adjustable Potentiometer:

CV voltage regulation, CC current regulation, UVP input undervoltage protection regulation

Auto Constant Voltage - Once you have adjusted the output voltage, it will remain the same and will not be affected by higher or lower input voltage.
