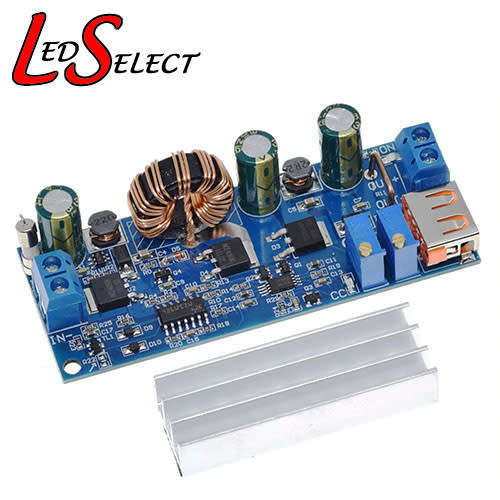

Step Up Voltage Current 4A 80W 2-24V to 3-30V with Heatsink **LOCAL STOCK**

Step Up Voltage Current 4A 80W 2-24V to 3-30V:

Category: 3200312645 / 3202312645 - Step Up Down / Voltage Regulator

Specifications:

Input Voltage: 2 - 24V
Output Voltage: 3 - 30V (Note that the USB port is directly connected to the output port, which is an adjustable voltage port of 3-30V, not a 5V port!)
Input Current: up to 15A
Output Current: 4A maximum (CC positioner is the current regulating potentiometer. When the current limit is reached, the CC indicator lights up.
Output Power: 3.7V input, maximum 45W; 12V input, maximum power 80W;
Output Ripple: two-stage filtering, low ripple output!
Conversion Efficiency: 82-95%
Input Overcurrent Protection: 15A fuse
Input Anti-reverse Protection: high efficiency MOSS
Input Undervoltage Protection: To prevent over-discharge of the lithium battery, solder 5. 5k resistance resistor at the lower left corner of the module.
Size: 80 x 32mm

1. BOOST boost structure, the regulation limit current can not be directly shorted to the output terminal. The CC potentiometer can be adjusted to the minimum counterclockwise. After the battery is connected, the current is rotated clockwise.
2. BOOST boost structure, the minimum output voltage is approximately equal to the input voltage, so the output current cannot be set from 0, and the minimum output current is approximately the input voltage divided by the load resistance value.
3. The module input IN-disable is shorted to the output OUT-, otherwise the constant current function is disabled.
4. Ensure that the power of the power supply is greater than the power required by the output load. Reduce the power usage when the module is hot!
5. The USB output port is not 5V output, and it is directly connected to the output port. The highest adjustable voltage is 30V.
