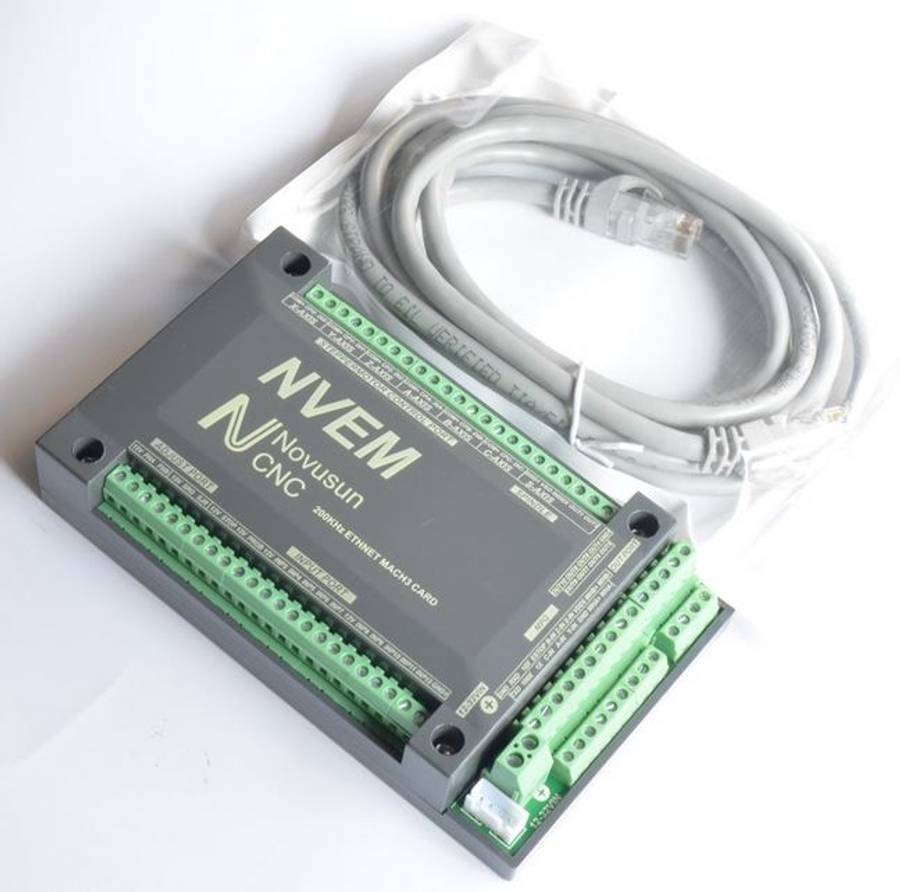

Stepper Motor 3 Axis CNC Control Card - MACH3/Ethernet

Stepper Motor 3 Axis CNC Control Card - MACH3/Ethernet

Product Description

This is the Stepper Motor 3 Axis CNC Control Card - MACH3/Ethernet for stepper motors, engraving machines, etc.

Product Specs:

• ^{Ethernet interface supports MACH3 software, can be directly connected to the computer or connecting to the router.}
• ^{Simultaneously control 6 stepper motor linkage operation with 12 programmable input interface, can be configured with a limit of emergency stop function.}
• ^{10 programmable output interface, can be configured for water cooling, fog and cold.}
• ^{1 standard hand vein MPG interface.}
• ^{Spindle PWM output control}
• ^{DCDC electrical isolation to enhance anti interference}
• ^{Optocoupler input, prevent external interference in series}
• ^{The highest 200K stepper motor control pulse output, suitable for most machines system needs.}
• ^{Exclusive design can be adjusted FRO, SRO, SJR parameters.}
• ^{Anti interference is greater than MACH3 USB control card, hand control reaction rate and other significant increase.}
• ^{NVEMv1.1 is the 3-6 axis motion controller we spend 4 years to design this control card.}
• ^{NVEMv1.1 support Mach3 software and standard MPG,through Ethernet to communicate with computer,just use the line to connect directly or transfer with router.}
• ^{NVEMv1.1 motion controller adopts the ARM design framework.The ARM design includes communication,codeanalytic,underlying algorithm and pulse gerneration. Rational design,reliablecontrol,convenient operation.}
• ^{12 ports photoelectric isolated input interface for ordinary digital data;}
• ^{10 ports photoelectric isolated output interface for ordinary digital data;}
• ^{1 port 0-10V spindle speed analog output interface(can change to PWM output);}
• ^{It can support 3-6 axis stepper systems,200KHz pulse output for every axis;}
• ^{ARM motion control chip;}
• ^{Main device is 12V-32VDC power supply input,current should higher than 0.5A;}
• ^{Compatible with MPG input,support the digital display MPG}

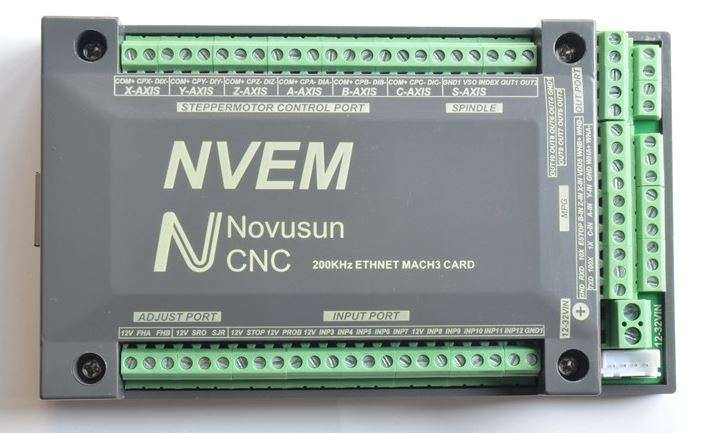

• ^{Products Appearance and struction and size}
• ^{NVEMv1.1 motion controller is with the sealed shell structure,there are 4 piece setting holes at the bottom.We can fix 4 piece 4mm diameter holes at the cabinet,and install the controller to the cabinet.}

How to Setup?

Manual Information

Software Video

^{Please Confirm Availability.}
