Stepper Motor CNC Router Kit 3 Axis+ M335 Motor Driver

Neotronics SA brings you:

Stepper Motor CNC Router Kit 3 Axis M335 Motor Driver + NEMA 23- Complete Kit

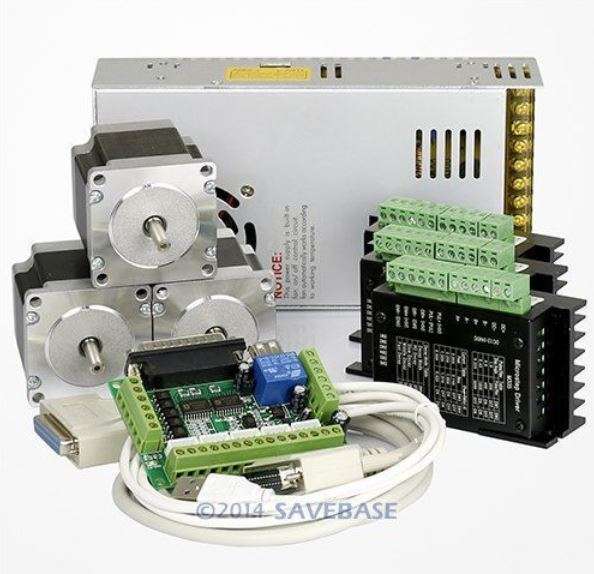

This awesome package has:

• 3 x 3.5A 30VDC M335 Microstep Drivers + 1 x 5-axis Breakout Board
• 3 x Nema23 1.26Nm/175 Oz-in Stepper Motors + 1 x 24V 15A Switching Power Supply

Features + Description:

The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller. The breakout board uses high-performance three-state driver 74HC244 and Schmitt inverter 74HC14. The input signal is amplified, rectified, filtered to make the drive capability of the output signal more stable and stronger. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, WinPc Light etc. parallel-control CNC software.

The M335 is a high performance microstepping driver with its lowest price. The M335 adopts single-chip PWM bipolar sinusoidal chopper to ensure low vibration and high efficiency. It is suitable for driving 2-phase and 4-phase hybrid stepping motors, so the Nema16, Nema17, Nema23 stepper motors with a 0.5A-3.5A current will be suitable.

Features

• ^{5-Axis Breakout Board}
• ^{High performance, cost-effective.}
• ^{All the signals are opto-isolated which can protect your computer.}
• ^{5-input interfaces for the Limits, Emergence-Stop, Cutter alignment etc.}
• ^{Wide input voltage range: 12-24V, and with anti-reverse function.}
• ^{One relay output control interface , accessed by the spindle motor or the air pump, water pump, etc.}
• ^{Output 0-10V analog voltage for inverter to control the spindle speed.}

M335 Stepper Driver

• ^{Low cost, Non-creeping phenomenon under low speed. Low noise and non-resonant region.}
• ^{1, 2, 8, 16 adjustable micro step control for more accurate and smoother motor running.}
• ^{Supply voltage up to 30V DC .}
• ^{Output current up to 3.5A .}
• ^{Suitable for 2-phase and 4-phase motors.}
• ^{High speed optoelectronic isolation signal input.}
• ^{Automatic idle-current reduction.}
• ^{Protection of power reversal.}

Application

Suitable for a variety of small sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotters, CNC machine tools, handling the devices.

Suitable for a wide range of stepping motors, from NEMA size 16/17/23.
Power Supply Selection

Voltage Selection

• ^{12-24V DC power supply for Nema 16/17 stepper motors.}
• ^{24-30V DC power supply for Nema 23 stepper motors.}
• ^{(High (¿ 30V) voltage will burn out the chips or stepper motors!!! Please be careful in choosing power supply.)}
• ^{Current Selection}
• ^{Output current of the power supply can be calculated by the following formula}
• ^{Output current = Rated current of your stepper motors x quantity + 2A}
• ^{If the supply current is too low for the drivers, it will easily burn the drivers.}

Please SHUT DOWN the power before you plug or unplug the connectors and adjust the DIP Switches to avoid burning up the board.
M335 DIP-Switch Settings
