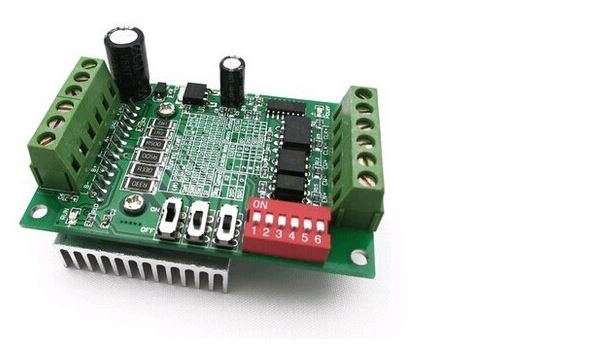

Stepper Motor Driver Board Controller TB6560 3A Single Axis

Stepper Motor Driver Board Controller TB6560 3A Single Axis

Product Description

• _{Rated maximum output: plus or minus 3 A, 3.5 A peak.}
• _{The Working voltage DC 10 v - 35 v. Switching power supply DC24V power supply.}
• _{Using the Toshiba TB6560AHQ the original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.}
• _{For two - phase within 42,57 stepping/four - phase 3 a/of line four/six - wire stepper motor, and is not suitable For wiring 3A stepper motor. The Automatic half the current function.}
• _{6 n137 high -speed optical coupling, guarantee high speed without losing step.}
• _{Subdivision: whole step, half - step, step on 1/8, 1/16 step, a maximum of 16 Subdivisions.}

Product Features

• _{Current grade - by - adjustable to meet your demand for a variety of applications.}
• _{Two semi - automatic flow adjustable.}
• _{6 n137 high -speed optical coupling, guarantee high speed without losing step.}
• _{Plate printed setup instructions operation without manual braking.}
• _{Thick teeth radiator, good heat dissipation.}

_{Locally Stocked! Available for Immediate Shipping.}
