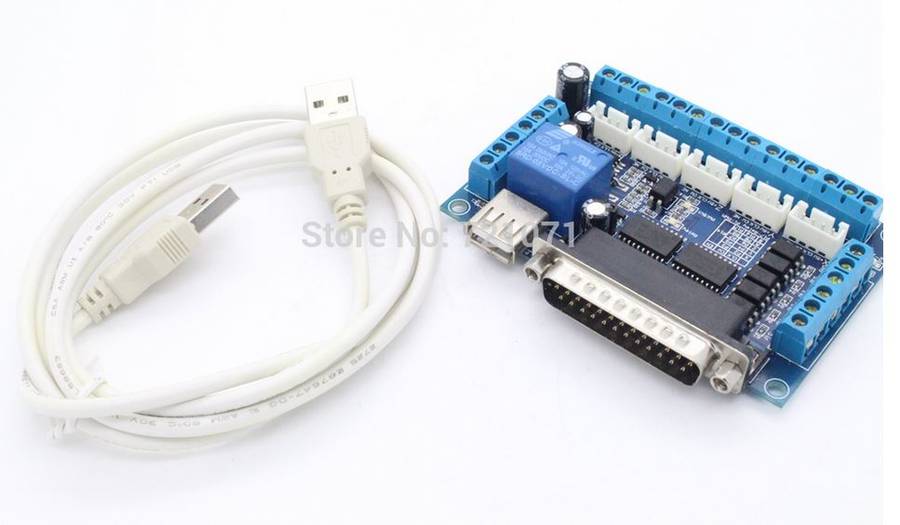

Stepper Motor Driver Breakout Board- 5 Axis CNC

Neotronics SA brings you:

Stepper Motor Driver Breakout Board- 5 Axis CNC Kit

Features:

• fully support of MACH3 and other computer software support for parallel port control.
• USB power supply and peripherals powered phase separation to protect computer security.
• peripheral wide voltage input,12-24V, and anti-reverse function.
• all of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
• all the way to the relay output port, control spindle switch. Output port P17 mouth.
• all the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
• open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
• P1 as PWM outputs can be controlled with optocoupler input spindle governor.
• can be accessed by a common cathode or common anode input level to 5V drive.

^{Please enquire of stock availability.}

Package contents:

1 X Axis Breakout Board

1 X USB Cable
