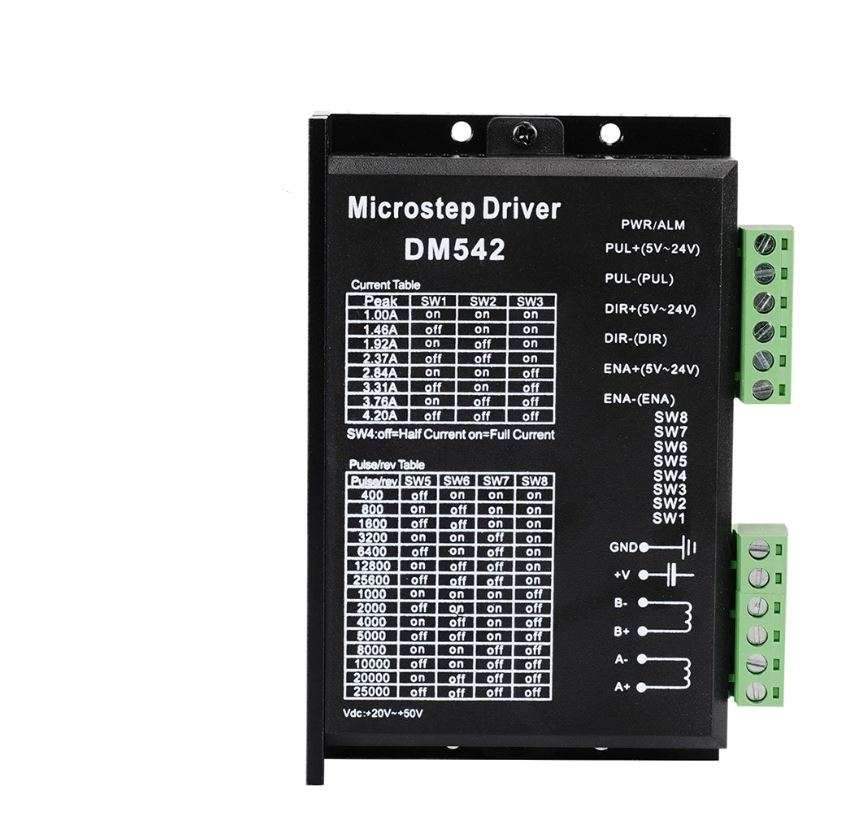

Stepper Motor Driver DM542 - 4.2A

Stepper Motor Driver DM542 - 4.2A

Product Description

The DM542 is one of the best value-for-money hybrid stepping motor drivers on the market and is designed to drive bipolar hybrid stepper motors with outside diameters of between 42mm and 86mm at less than a 4.0A phase current. By utilizing a similar circuit to typical servo control methods, the DM542 runs smoothly at both high and low speeds with little to no noise or vibration.

Product Features

1. Driver integrated overvoltage and overcurrent protection

2. Input signal light isolation

3. Bipolar constant current chopping method

4. DC power supply 20~50VDC (24~48VDC is recommended)

5. Maximum drive current 4.2A

6. Output current dial switch is adjustable

7. Low speed zero vibration with minimal noise

8. Strong anti-interference ability and high reliability

Product Specs

• Input voltage:  DC 24～50V input
• Output current:  less than 4 amperes
• Output current:  1.0A～4.2A
• Power consumption: power consumption: 80W; internal insurance: 6A
• Temperature:  working temperature -10～45; storage temperature -40～70
• Humidity:  no condensation, no water droplets
• Gas:  non-flammable gas and conductive dust
• Weight:  200 grams

Locally Stocked. Available for Immediate Shipping!
