Stepper Motor - Nema 23 Dual Shaft / Single Shaft - 57x56 - 3A 1.26Nm double shaft 180Oz-in for CNC & 3D Printer

Product Description

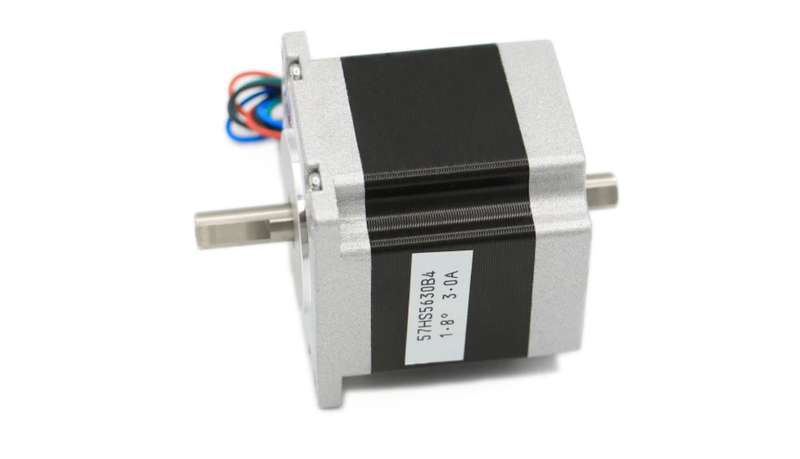

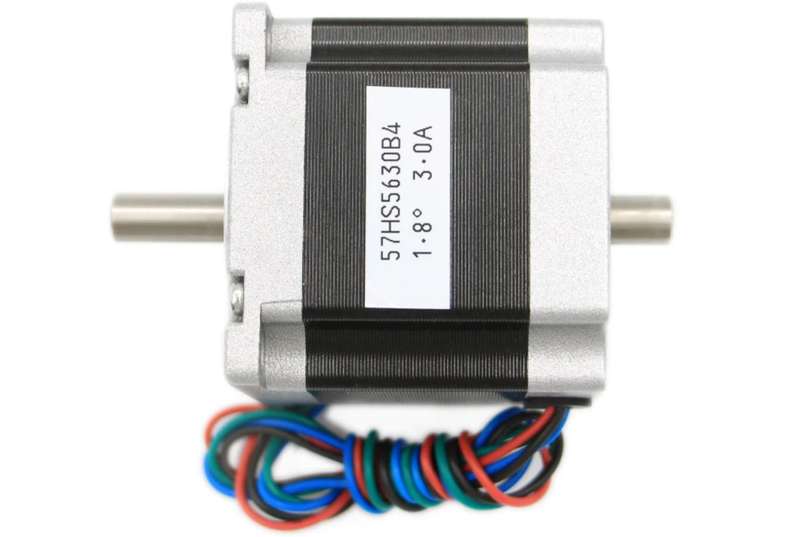

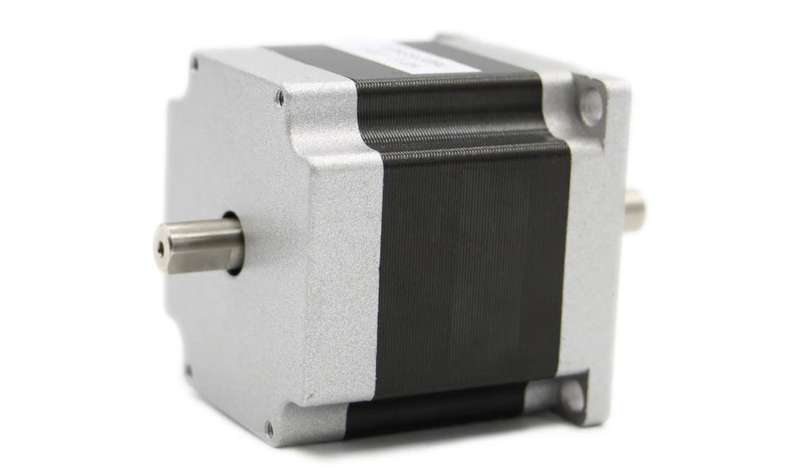

This is the famous size Nema23 Dual Shaft CNC Stepper motor 57x56 NEMA 23 stepper motor D= 8mm 3A 1.26Nm double shaft stepping motor 180Oz-in

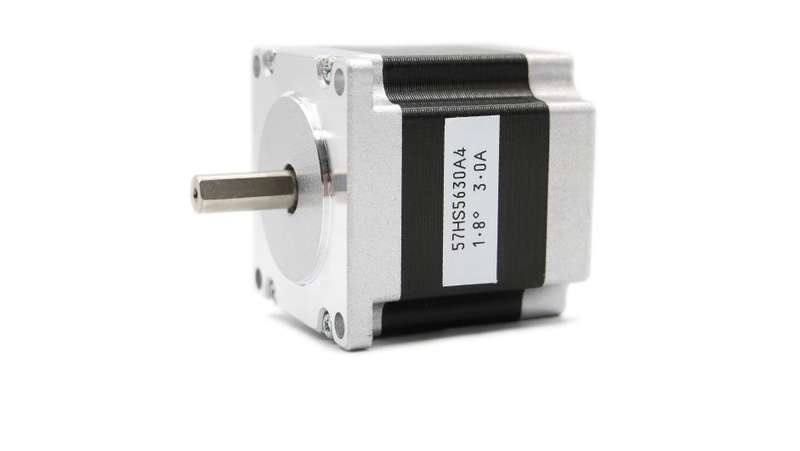

We also offer the exact same motor in the single shaft option:

Product Specs

• Phase:2
• Step Angle:1.8 deg
• Voltage:2.7v
• Current:3.0A
• Resistence:0.90
• Inductance:2.4mH
• Holding Torque:1.2Nm
• Shaft Diameter:8mm
• Double Shaft or Single Shaft

Some advantages of this motor:

1. The magnetic steel is high grade, we usually use the SH level type.

2. The rotor is be coated, reduces burrs, working smoothly, less noise.

3. We test the stepper motor parts step by step. The stator is been test and the rotor is tested before assembly.

4. After we assemble the stepper motor, we will do one more test for it, to make sure the quality is good.

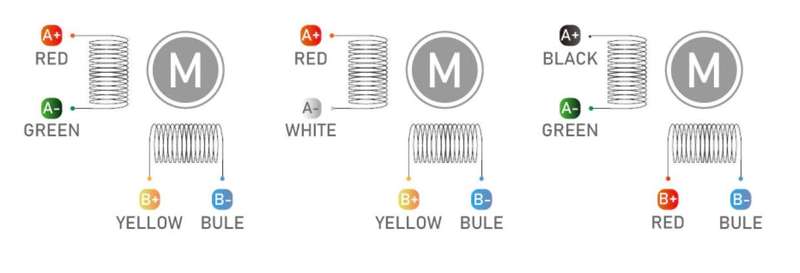

Wiring and Diagram
