Bipolar Stepper motor Driver

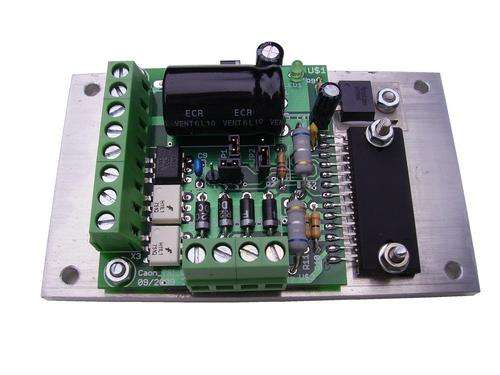

The TSI_01 is a microstepping drive based on the Toshiba TA8435 chip. It is suitable for Bipolar and Unipolar stepper motors sized Nema23 and smaller, where current requirement does not exceed 1.5A

Inputs to the drive are of the universal type; Step and Direction + drive Enable

The TSI_01 is an entry level drive and serves as an excellent starting point to the world of CNC machining and robotics. It has been developed especially for the South African market allowing you to bypass high import costs. This has to be the lowest cost drive you will get anywhere!

By using Free or low cost software like TurboCNC, CNCPro, Mach3 or EMC, you could soon build yourself a benchtop CNC machine and be machining your own parts! It can also be used for control applications, like a small pick n place machine, packaging machines, assembly jigs, and general automation.

Features

Optically isolated inputs

Single voltage power input, 24V to 36V DC

Option of negative or positive biasing on opto-isolater

Step and Direction can be driven directly off printer port

Independent connections for each opto-isolator

Jumper selectable microstepping, x1, x2, x4, x8

Single current option. Factory set at 1A

Drive enable input allows for independent shut-off

Large plate base to ease additional heat-sinking or stacking

High quality screw terminals

Open frame to reduce cost

5V power LED indication

Amperage output is preset but an option is available to run at 62% of full power

Pay; R440 for 1 drive

R430 each, for 2 drives

R420 each, for 3 drives or more
