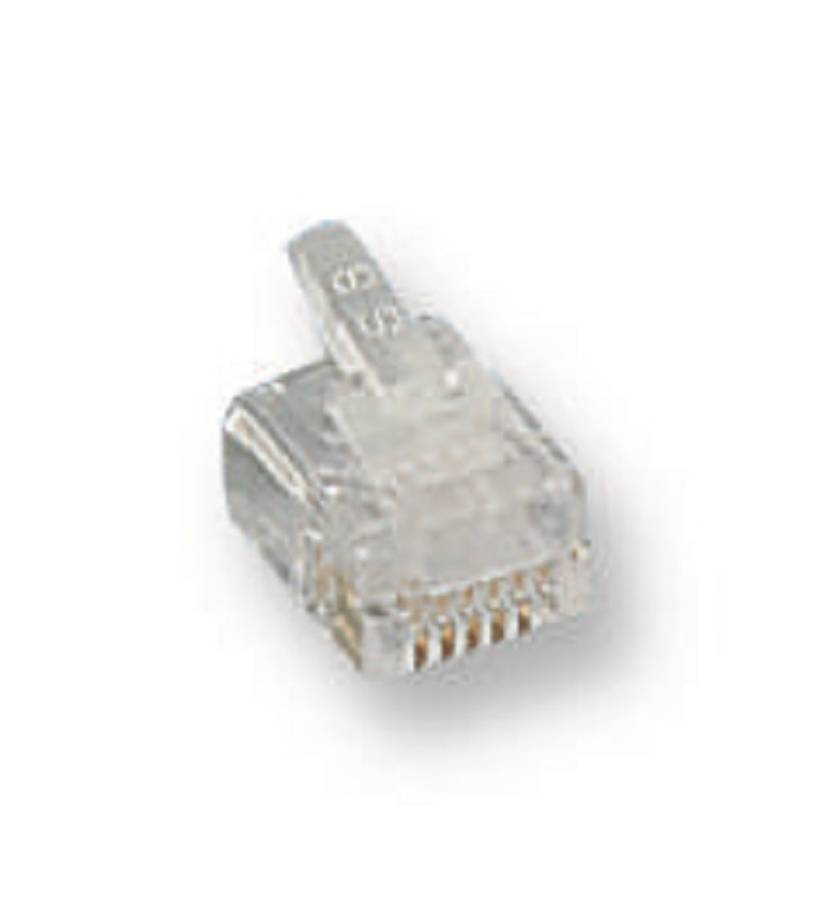

Stewart Connector (940-SP-3066) Modular Connector, RJ12 Plug, 1 x 1 (Port)

Modular Connector, RJ12 Plug, 1 x 1 (Port), 6P6C, Cable MountProduct OverviewThe 940-SP-3066 is a 6-position 6-contact Modular Plug with gold-plated bronzecontacts. The RJ11 plug has electro-polished contact design to accommodate solidand stranded conductors and wire management systems to improve plug assembly andperformance.UL94V-0 Flammability rating-40 to 85°C Temperature rangeApplicationsCommunications & NetworkingProduct InformationConnector Type: RJ11Modular Connector Type: RJ12 PlugPort Configuration: 1 x 1 (Port)No. of Contacts: 6ContactsNo. of Positions / Loaded Contacts (per Port): 6P6CConnector Mounting: Cable MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: CrimpShielding: UnshieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: 30
