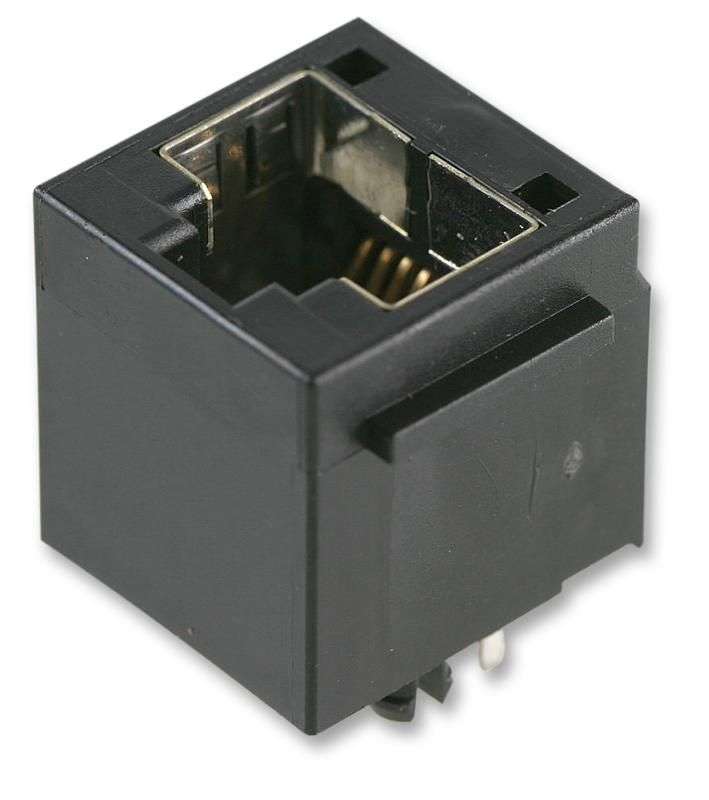

Stewart Connector (SS-650810-FLS) Modular Connector, RJ45 Jack

Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Through Hole MountProduct OverviewThe SS-650810-FLS is a 10-position 8-contact 1-port Modular Socket withgold-plated bronze contacts. The RJ45 socket is equipped with EPP-918A contactdressing to increase the durability of the contacts to withstand heavyinsertions and extractions of the mating plugs and provide increased protectionin harsh environments.1.5A/150V RatingUL94V-0 Flammability ratingApplicationsCommunications & NetworkingProduct InformationModular Connector Type: RJ45 JackPort Configuration: 1 x 1 (Port)Gender: JackNo. of Contacts: 8ContactsNo. of Positions / Loaded Contacts (per Port): 8P8CNo. of Positions: 10WaysConnector Mounting: Through Hole MountNo. of Ports: 1PortsConnector Orientation: VerticalContact Termination Type: Through HoleShielding: UnshieldedMagnetics: Without MagneticsContact Plating: Gold Plated ContactsLEDs: Without LEDContact Material: Phosphor BronzeLight Pipes: Without Light PipeProduct Range: 65
