StickC Plus Hat Prototype Diy Protoboard Breadboard PCB Universal Board

Description:

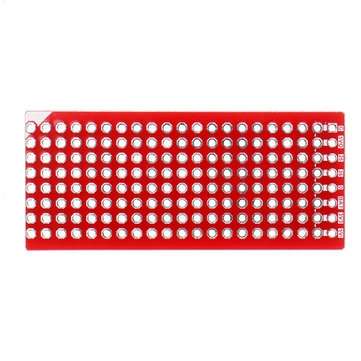

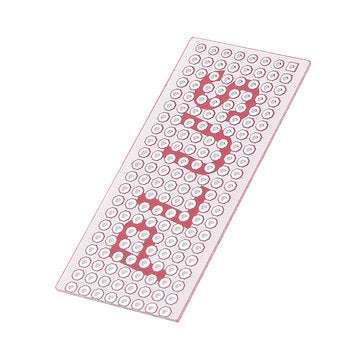

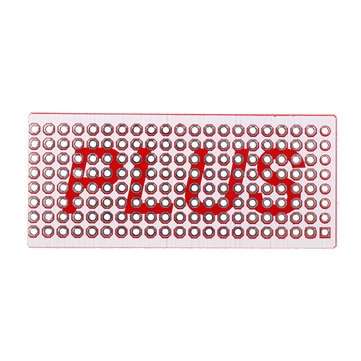

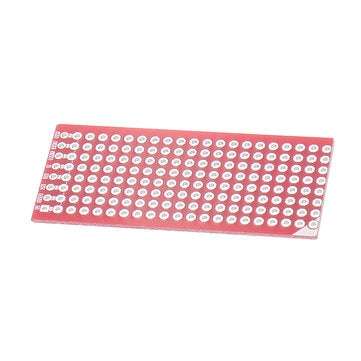

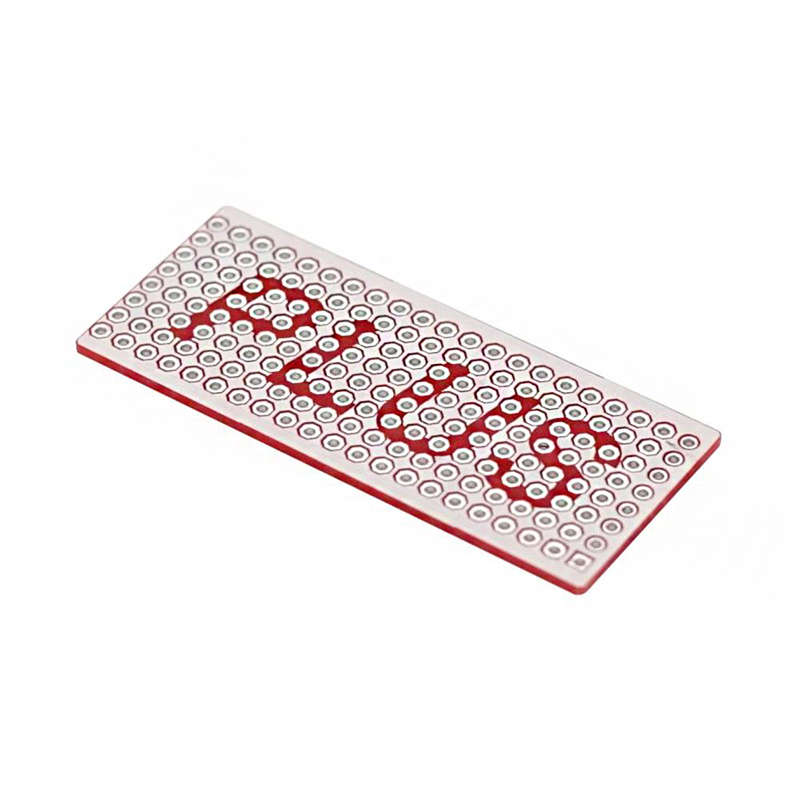

PRO TO PLUS HATis a universal pro to board compatible with M5SticKC. Compared to the previous PRO TO HAT, PLUS is designed to provide a larger board area. Combined with the 8 pin header, you can have more add-ons for your M5StickC. The expansion interface is fully connected to the universal board, allowing the user to freely design the circuit on the board. The 90ﾣ pin header enables the pro to board to be spliced with the M5StickC at various angles. If you plan to add circuit design to your project and hope to achieve space saving by changing the way the board is spliced, HAT PRO TO PLUS will be a good choice.

Product Features:

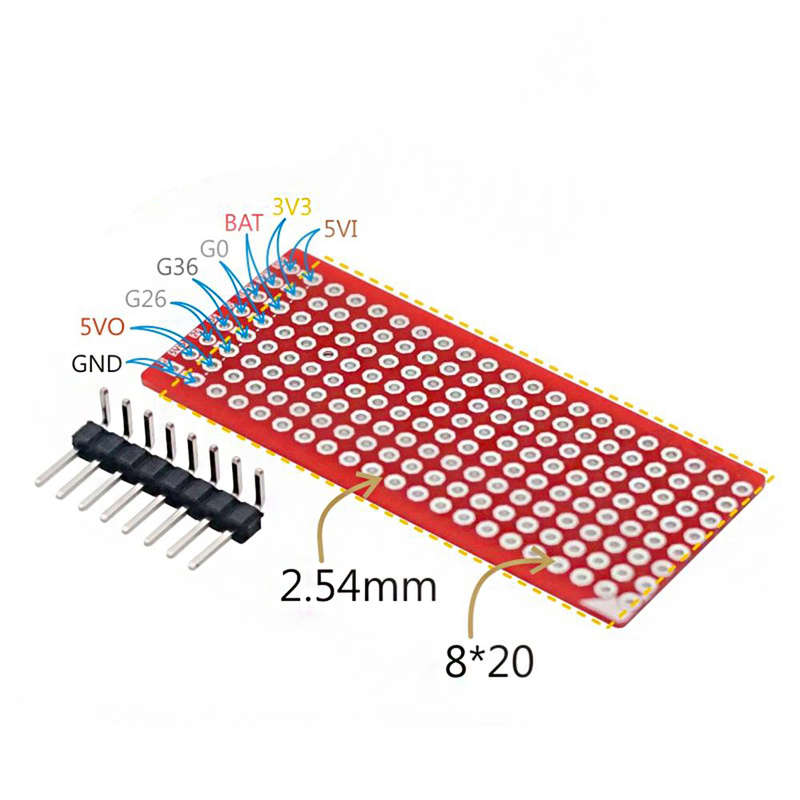

• Hole Size: 0.039 1mm (CNC Drilled)
• Hole Pitch: 0.1 in - (2.54 mm)
• Entire Hole Quantity: 168 Holes

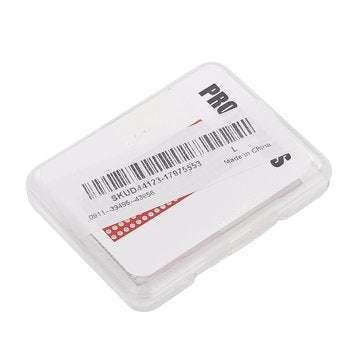

Package Included:

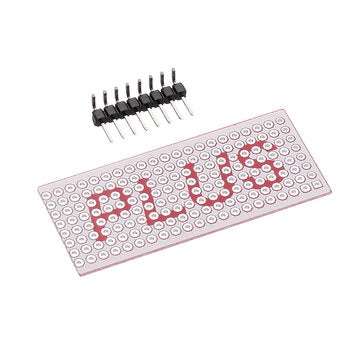

• 1x PRO TO PLUS HAT

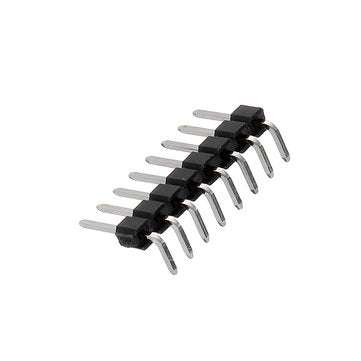

• 1x 8 pin header (90ﾣ)

Application:

• Prototyping
• Related work by M5 User:

Code:

To get complete code, please click.
