STM32 F103C8T6 Minimum System Development Board Module

This board is low cost Minimum System Development Board for ARM Microcontroller – STM32F103C8T6. Board is suitable for learners that want to learn STM32 microcontroller with ARM Coretex-M3 32-bit core.

FEATURES:

• On-board Mini USB interface, you can give the board power supply and USB communication.
• On-board test indicator LED
• On-board reset button and power indicator LED
• On-board 100ma 3.3V Regulator
• All GPIO are led out and the names of the pins are marked
• After soldering the headers, you can directly plug the board onto the breadboard

SPECIFICATIONS:

• CPU Part Number: STM32F103C8T6
• Core: ARM 32 Cortex-M3 CPU.
• CPU Internal Maximum Clock : 72MHz
• External Clock Source: 8MHz crystal
• 64K flash memory, 20K SRAM
• 2.0-3.6V power, I/O
• Reset(POR/PDR)

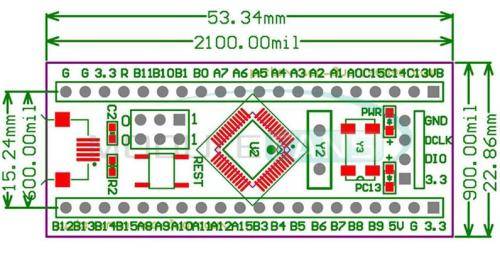

• Size:5.3cm x 2.2cm

PACKAGE INCLUDES:

• 1x STM32 – STM32F103C8T6 Board
• 1x 40 Pin header
